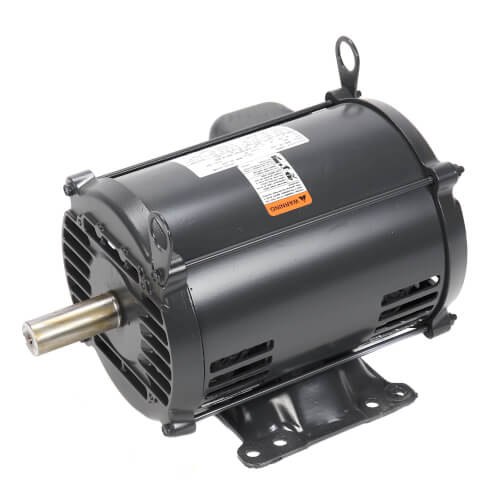

Main product image of 3-Phase General Purpose Motor (208-230/460V, 5 HP 1800 RPM)
Magnifying glass
Hover image to zoom

3-Phase General Purpose Motor (208-230/460V, 5 HP 1800 RPM)

Brand:
US Motors
SKU:
D5P2D
Rating:
(0)
Q&A:
(1)
3-Phase General Purpose Motor (208-230/460V, 5 HP 1800 RPM)
Magnifying glass
Hover image to zoom
$699.41 each
In Stock
In Stock
Get 187 Fri, Jul 3 - Tue, Jul 7
This item replaces: EM3218T-G

Lift Gate

–
This product weighs 73.31 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208-230/460v
Product Highlight: RPM
1800 RPM
Product Highlight: Horse Power
5 HP

Description

–

For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal.


Features:

  • WORLDMOTOR Features Except Where Noted, and on 200V & 575V Motors
  • Class F Insulation, Class B Rise At Service Factor
  • Rolled Steel Frame 56-320, Cast Iron Frame 360-440
  • Aluminum End Shields 56-250, Cast Iron End Shields 280-440
  • "CE" Mark On Nameplate (140 Frame & Larger)
  • 40°C Ambient, NEMA† Design B Performance On 60 Hz Sine Wave Power
  • 1.15 Service Factor
  • Regreasable Bearings 180 Frame & Up
  • Double Shielded Bearings 140-400, Open on 440
  • Bearing Caps On 400 & 440 Frames
  • F1 Assembly Position except where noted
  • Lifting Provisions 210 Frame & Up
  • Conversion Kits: Drip Cover Kits (140-320 Frame)


Specs

–
Type:

DE

Voltage:

208-230/460v

Horse Power:

5

RPM:

1800

Phase:

3

Frame:

184T

Enclosure Type:

Open Drip Proof
