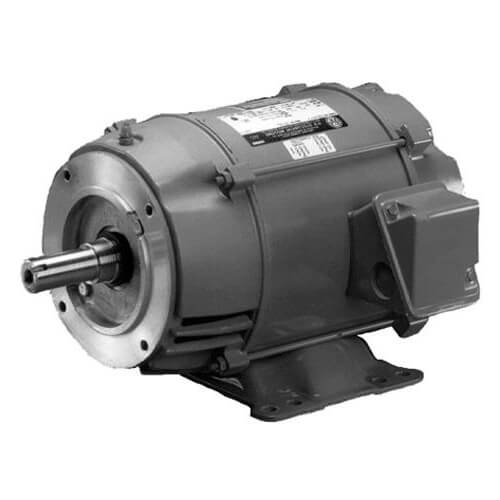

3-Phase ODP Special Application Close Coupled Pump Motor, 184JM (208-230/460V, 5 HP, 1755 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$823.65 each
In Stock
Get 29 Wed, Jul 8 - Fri, Jul 10
This item replaces: DJ5E2DM
Lift Gate
–
This product weighs 78 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1755 RPM
5 HP
Description
–
For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used where dirt and moisture are minimal.
Features:
Note: Image may not be actual representation of item.
Features:
- Class F Insulation, Class B Rise at Service Factor
- Rolled Steel Frame
- Aluminum End Shields 140-250, Cast Iron End Shields 280-320
- Oversized Ball Bearings with Locked Shaft End Construction
- Premasked Mylar Nameplate (with "CE" Mark)
- F1 Assembly Position
- Regreasable Bearings 180 Frame & Up, Lifting Provisions 210 Frame & Up
- Double Shielded Bearings
- 104 F Ambient, NEMA Design B Performance on 60 Hertz Sine Wave Power
- "JP" Shaft for Packing Seal, "JM" Shaft for Mechanical Seal
- Full 50 & 60 hertz Operating Data on Nameplate (3)
- Conversion Kits: Canopy Kits
Note: Image may not be actual representation of item.
Specs
–
| Type: | FD4 |
|---|---|
| Voltage: | 208-230/460v |
| Horse Power: | 5 |
| RPM: | 1755 |
| Phase: | 3 |
| Enclosure Type: | Open Drip Proof |
| Frame: | 184JM |
