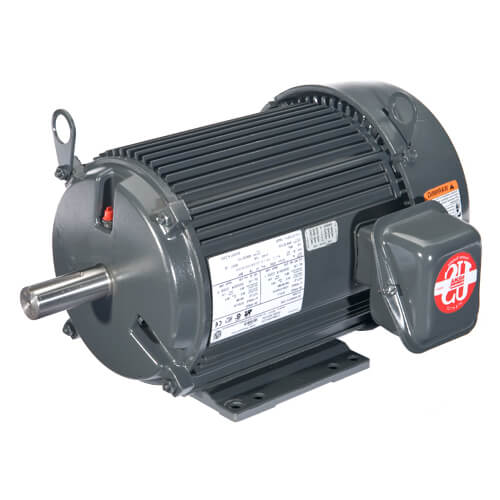

3-Phase TEFC General Purpose Motor, 213T (208-230/460V, 7-1/2 HP 1800 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,467.51 each
Backorder
Get it Thu, Jun 19 - Tue, Jul 22
MANUALS (1)
Lift Gate
–
This product weighs 163 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1800 RPM
7-1/2 HP
20-18.5/9.3 Amps
Description
–
For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related
industries requiring protection within harsh operating conditions.
Features:
Note: Image may not be actual representation of item.
Features:
- World Motor Features Except Where Noted
- Class F Insulation, Class B Rise at Full Load on 60 Hertz Sine Wave Power
- Cast Iron Frame (140: Rolled Steel), Cast Iron End Brackets
- Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
- Same Size Bearings (180-400 frames)
- Shaft Slinger On Pulley End for IP54 Protection
- Dual Voltage 230/460 Volts (1-100 HP)
- 104 F Ambient, NEMA Design B Performance on 60 Hertz Sine Wave Power
- Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions 180 Frame & Up
- Double Shielded Bearings 140-360, Open on 400-440
- 1.15 Service Facto @ 60 Hz
- Steel Fan Cover & Conduit Box
- Field Convertible to F2 Mounting 180 Frame & Larger
- Condensation Drains with Threaded Brass Breather Plugs
- Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits (except 320-360)
Note: Image may not be actual representation of item.
Specs
–
| Type: | CTE |
|---|---|
| Voltage: | 208-230/460v |
| Horse Power: | 7-1/2 |
| RPM: | 1800 |
| Phase: | 3 |
| Amperage: | 20-18.5/9.3 |
| Frame: | 213T |
| Enclosure Type: | Totally Enclosed Fan-Cooled (TEFC) |
