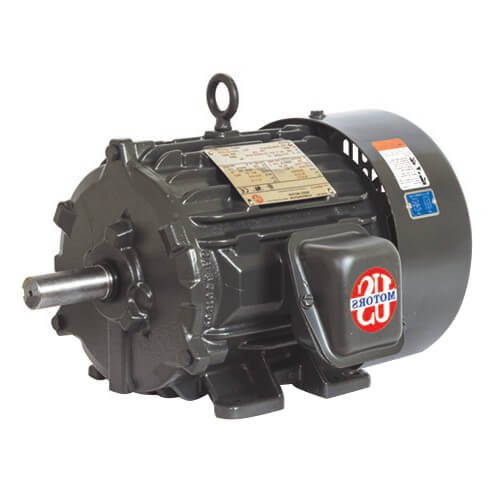

3-Phase General Purpose Motor, T-Frame (230/460V, 40 HP 1800 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,192.96 each
In Stock
Get 40 Wed, Jul 8 - Fri, Jul 10
MANUALS (1)
This item replaces: D34S2A
Lift Gate
–
This product weighs 450 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230/460v
1800 RPM
Reversible
40 HP
Rigid Base
46 Amps
Description
–
Designed for pumps, fans, compressors and other general purpose applications where contaminants are minimal. Built to withstand a variety of severe duty applications in oil and gas, pulp and paper, mining, saw mills, foundries, chemical plants, waste management and other process-related industries. Cast-iron, totally enclosed fan cooled (TEFC) World Motor®for harsh environmental conditions
Product Features
Product Features
- Efficiency: 94.1%
- Enclosure: TEFC
- F/L Amps: 46
- HP: 40
- Hz: 60/50
- Insulation Class: F
- Mounting: Rigid Base
- Frame: 324T
- Phase: Three
- RPM: 1800
- Rot.: Rev.
- Speeds: 1
- Std. Mount.: Horizontal
- Thermal Protection: None
- Type: Polyphase
- Volts: 230/460
Specs
–
| Type: | Polyphase |
|---|---|
| Voltage: | 230/460v |
| Phase: | 3 |
| Horse Power: | 40 |
| Speeds: | 1 |
| RPM: | 1800 |
| Amperage: | 46 |
| Bearings: | Ball |
| Frame: | 324T |
| Mount: | Rigid Base |
| Rotation: | Reversible |
| Insulation Class: | F |
| Motor Orientation: | Horizontal |
| Overload Protection: | None |
| Enclosure Type: | Totally Enclosed Fan-Cooled (TEFC) |
