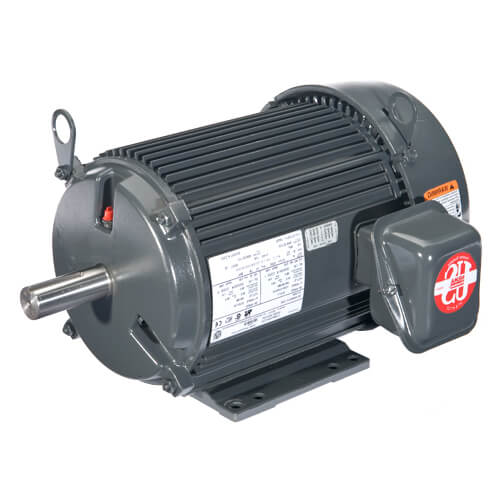

3-Phase TEFC General Purpose Motor, 213T (208-230/460V, 7-1/2 HP 1800 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,320.28 each
In Stock
Get 27 Fri, Jun 12 - Tue, Jun 16
MANUALS (1)
Lift Gate
–
This product weighs 124.89 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v
1800 RPM
7-1/2 HP
Description
–
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Features:
Note: Image may not be actual representation of item.
Features:
- World Motor Features, Except where Noted
- Class F insulation, Class B Rise at Full Load on 60 Hertz Sine Wave Power
- Aluminum Frame (180-280) & Rolled Steel Frame (56-140)
- "CE" Mark on Nameplate (140 Frame & Larger)
- Shaft Slinger on Pulley End
- Full 50 & 60 Hertz Operating Data on Nameplate (03)
- Full HP @ 50 Hz
- Field Convertible to F2 Assembly (180 Frame & Up)
- 104 °F Ambient, Nema Design B Performance on 60 Hertz Sine Wave Power
- Regressable Shaft-End Bearings 180 Frame & Up
- Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame
- Suitable for Wye-Delta Start 250 Frame & Larger
- Dual Voltage Ratings Suitalbe for Part winding Start (PWS) on Low Voltage
- Lifting Provisions 180 Frame & Up
- Inverter Suitable 10:1 Variable Torque, 4:1 Constant Torque
- Conversion Kits: Drip Cover & Brakes (56-210 Frame)
Note: Image may not be actual representation of item.
Specs
–
| Type: | UTE |
|---|---|
| Voltage: | 208-230/460v |
| Horse Power: | 7-1/2 |
| RPM: | 1800 |
| Phase: | 3 |
| Frame: | 213T |
| Enclosure Type: | Totally Enclosed Fan-Cooled (TEFC) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Will this motor operate mounted in a vertical position. Thanks Tony
Asked by Tony 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, this motor can be mounted in a vertical position and it will operate.
