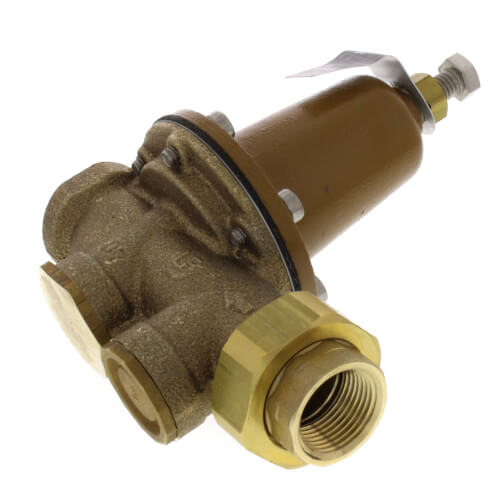

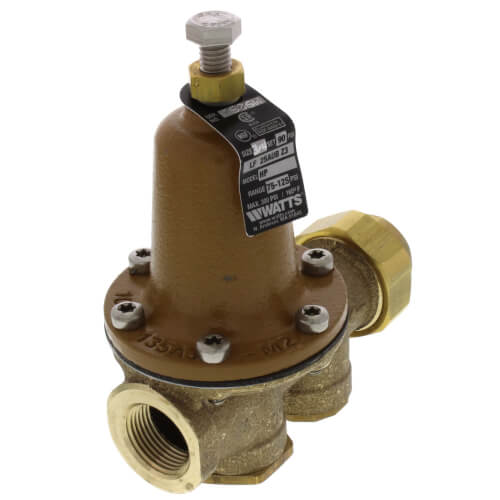

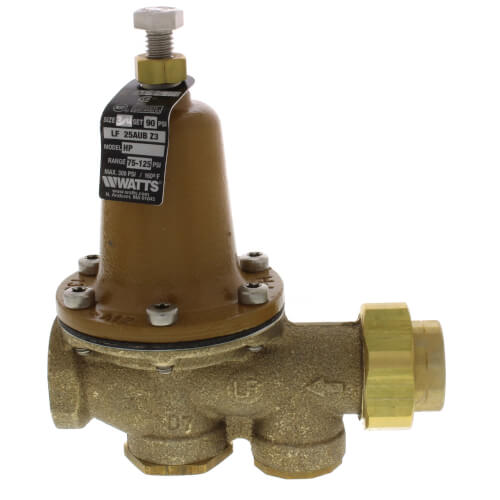

3/4" LF25AUB-HP-Z3 High Pressure Reducing Valve (Female Union x Female)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$491.79 each
In Stock
Get 4 Wed, Jul 8
Order by today, receive Wednesday
MANUALS (2)
This item replaces: 0070421
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Brass
125 MAX PSI
75 PSI
Union FNPT
FNPT
3/4"
Description
–
Series LF25AUB-Z3 Lead Free Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free brass body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (344kPa).
Specs
–
| Size: | 3/4" |
|---|---|
| Min Pressure (PSI): | 75 |
| Max Pressure (PSI): | 125 |
| Material: | Brass |
| Max Inlet Pressure: | 300 PSI |
| Temperature Range (F): | 33°F to 160°F |
| Inlet Type: | Union FNPT |
| Outlet Type: | FNPT |
| Lead Free: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
1 Replacement Part
3/4" 25AUB RK Repair Kit
SKU: 0864943
Watts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
I would buy from you again.
Product was fine. No issues. I have got to say the products arrive very fast. You guys do an awesome job!
Sam
Maryland
10 months ago
Verified Buyer
Was this review helpful to you?
Good quality
Broke it apart to see what's inside. Well made product, easy to install and adjust.
Sergey
NY
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
Valve works as described
Joe Homeowner
New London
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Will this product reduce water pressure from 50psi to 7psi for use in a Solar Tube HWH Array low pressure system?
Asked by Waynito 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffAdjustable Reduced Pressure Range: 25–75psi and Standard Reduced Pressure Setting: 50psi.
Was this review helpful to you?
Q: WHAT ARE THE DIMMENSIONS ON THIS ITEM.
Asked by CARLOS 14 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to page 2 of the specifications at the link below. http://s3.pexsupply.com/manuals/1345728817245/77826_PROD_FILE.pdf
Was this review helpful to you?
