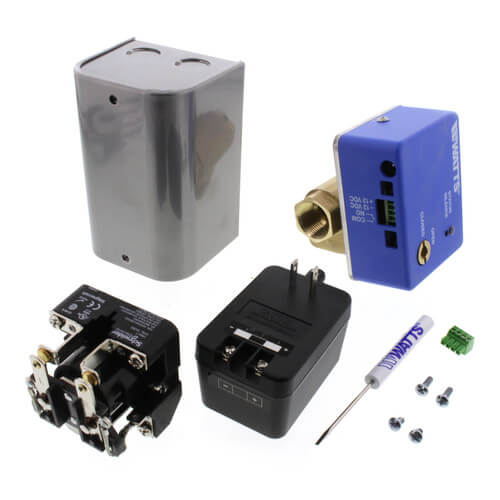

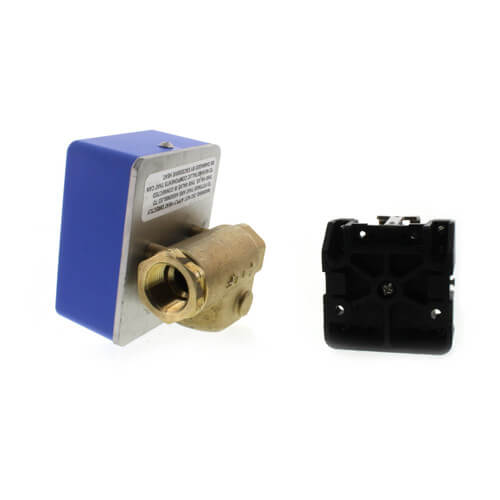

3/4" LFWDS-E220 Lead Free FloodSafe Electric Water Shutoff (220v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$809.78 each
In Stock
Get 1 Fri, Jul 10
MANUALS (2)
This item replaces: 0301003
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4"
220v
150 MAX PSI
Yes
Description
–
Sized for 3/4" or 1" (20 or 25mm) water supply lines.
Series WDS and LFWDS FloodSafe Water Detector Shutoff protects the homeowner from catastrophic damage due to the water heater leaking. The FloodSafe will detect the presence of water on the floor beneath the water heater and will automatically shutoff the water supply and power source to the water heater. Optional battery backup unit available (WDS-BB).
Features:
Series WDS and LFWDS FloodSafe Water Detector Shutoff protects the homeowner from catastrophic damage due to the water heater leaking. The FloodSafe will detect the presence of water on the floor beneath the water heater and will automatically shutoff the water supply and power source to the water heater. Optional battery backup unit available (WDS-BB).
Features:
- Testable and Resettable: The FloodSafe® Water Detector Shutoff can be easily reset by the contractor, home or business owner or plumbing inspector to assure proper operation.
- Easily installed on new or existing water heaters.
- No special piping is required.

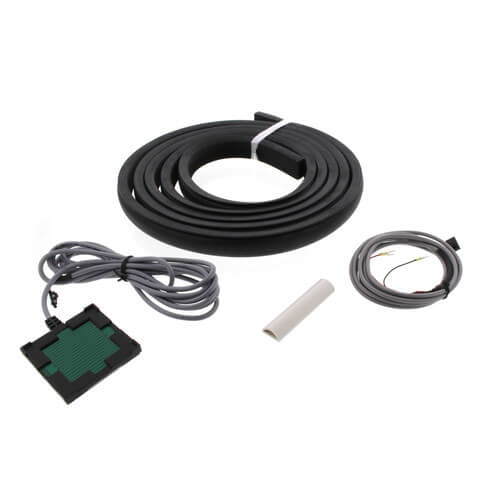

- Supplied with a Water Dam for concrete, linoleum, tile or other hard surface flooring.
- Secure interlocking connector cables are unique to each connecting device.
- Employs state-of-the-art water detection technology (no terminals to corrode or to impair operation).
- Provides contacts for monitored alarm detection systems.
- Power Cutout Modules for the standing pilot gas fired water heaters retain thermocouple circuit in the event of momentary power outage.
- Optional WDS-BB battery backup maintains normal operation for up to three days during power outages.
Specs
–
| Size: | 3/4" |
|---|---|
| Voltage: | 220v |
| Max Pressure (PSI): | 150 |
| Lead Free: | Yes |
| Product Type: | Valve |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.9 out of 10 reviews
100% would recommend this product
5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%

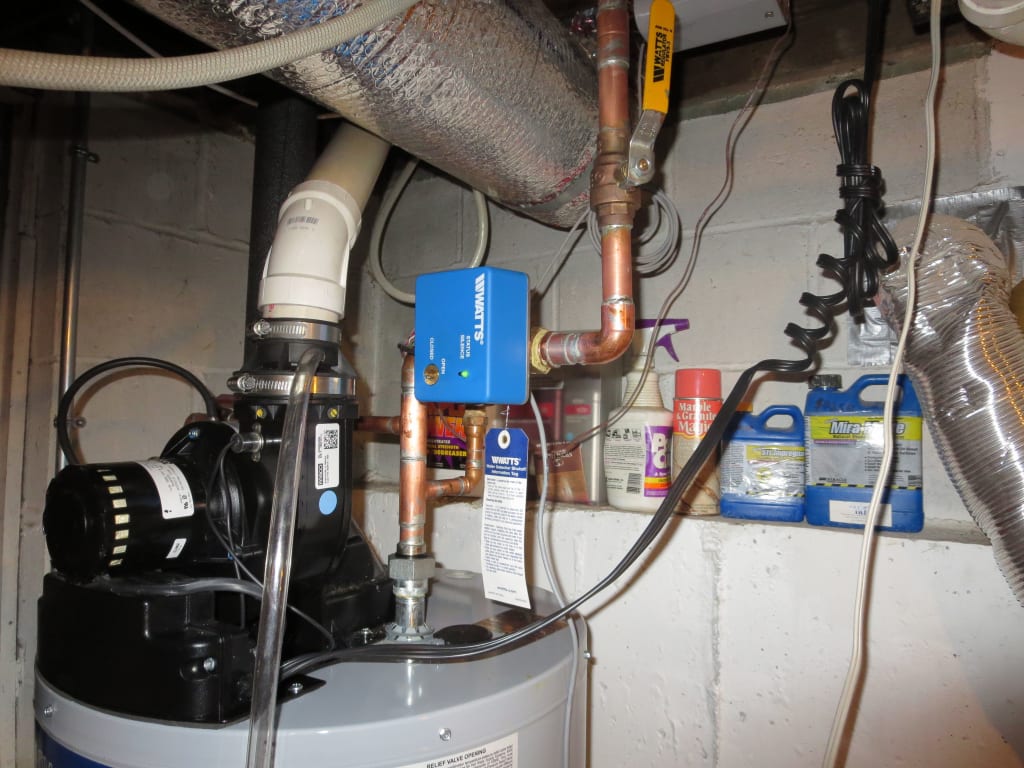

Customer Images
Showing 1-10 of 10 reviews
Fast service
I have ordered a total of 6 of these units. Even when the country was out of them....they were the first to get them in and ship. I believe my last order arrive within 3 days. Thanks for the great service!
BPE
Maine
3 years ago
Verified Buyer
Was this review helpful to you?
Great Product & fast delivery!
This is a Great Product & fast delivery! We are installing these leak detectors on all of our water heaters. They're easy to install & work great.
Lead Engineer (Boston Properties)
Springfield, VA
8 years ago
Verified Buyer
Was this review helpful to you?
water shut off valves
Customer loves this product
gci
la
8 years ago
Verified Buyer
Was this review helpful to you?
Easy to install, does just what its supposed to
Works just as expected. Very easy to install. I like that it also controls an internal switch pinned out so another system can determine the state of the shutoff valve. My water heater is in a crawl space where I might not hear the alarm so this is a very useful feature. It could be used to control an indicator light which is more visible or some other alarm system or what you please. I only wish my powered anode also used a 12v dc supply like this does so I would only need one power adapter, but oh well.
Luke
Denver, CO
9 years ago
Verified Buyer
Was this review helpful to you?
Easy to Install; Tests Great
My 120 Gal solar/electric back-up hot water system is past the tank warranty period. I decided it was time for some leak insurance. This is the only system that I found that would both shut off the water and the power to the hot water tank. It tests great. Since no hot water tank lasts forever, I feel confident that I will be able to use my current system till the tank starts leaking without catastrophic water damage to my workshop.
DIY-er
North Carolina
10 years ago
Verified Buyer
Was this review helpful to you?
Watts FloodSafe Gas And Water Shutoff
I added the WAGS valve when I installed a new power vented gas water heater. I am glad I did because the old steel water heater nipple was almost completely corroded away INSIDE where the copper sweat fitting was threaded onto the nipple. If it had failed, there would have been a flood. BTW, I also got the Watts dielectric unions from Supply House, which previously had never been used when the old tank was installed.
I highly recommend using DIELECTRIC unions.
If you have a power vented water heater, the ELECTRIC version of the watts valve shuts off both the water supply and the electricity to the power vent, which in turns insures that the gas is never lit if the water tank fails.
Finally...be sure that ALL three cables are connected if you pre test the system, including the ELECTRIC CONTACTOR, or else the valve will safety out after a few seconds.
Brian, PE, Mechanical Engineer
Hull, MA
11 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
not cheap but worth the price
Best thing I've found to protect against flooding when a drain is not possible due to structural conditions.
a plumber
austin, TX.
11 years ago
Verified Buyer
Was this review helpful to you?
Works
Quality product that works. The mechanism that shuts off the water is a better design than other products that use a low torque motor to close a valve. The electric box that houses the relay could be a little bigger to facilitate the 10ga wires and controller wires. I didn't get the battery backup because it would be one more thing to maintain and my water pump will be off if the electricity is off. You will need a very large flat screw driver to reset the mechanism if it trips. Every water heater should have one of these shutoffs!
WillsWorks
West Grove, PA
11 years ago
Verified Buyer
Was this review helpful to you?
Well engineered and easy to install.
Well engineered and easy to install
Stan
Ponce Inlet, FL
11 years ago
Verified Buyer
Was this review helpful to you?
A very good investment to save you money
Placed the shut off valve in the water heater pan in the attic. My heater is 27 years old and will fail soon. This gives me piece of mind and will save me the hastle of replacing the ceiling and dealing with the insurance company.
Gordon the gadget nut
Slidell, Louisiana
12 years ago
Verified Buyer
Was this review helpful to you?
