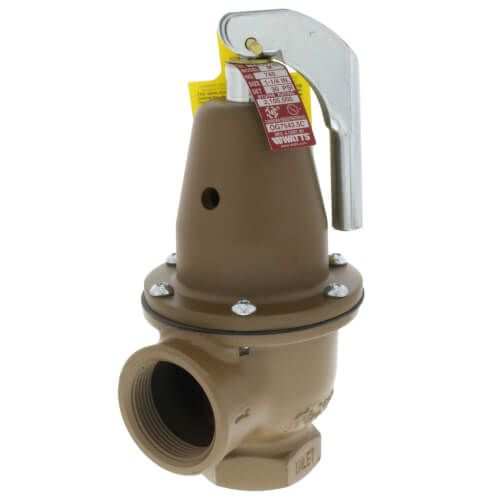

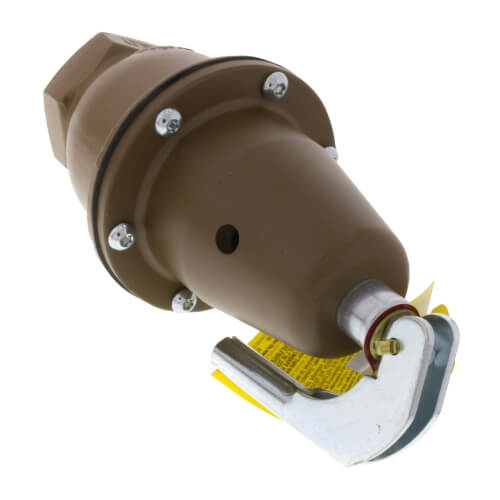

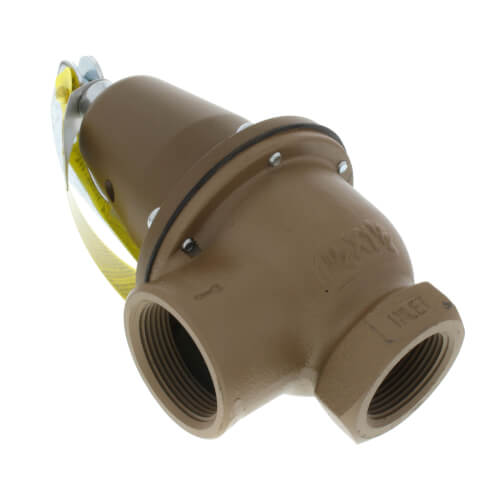

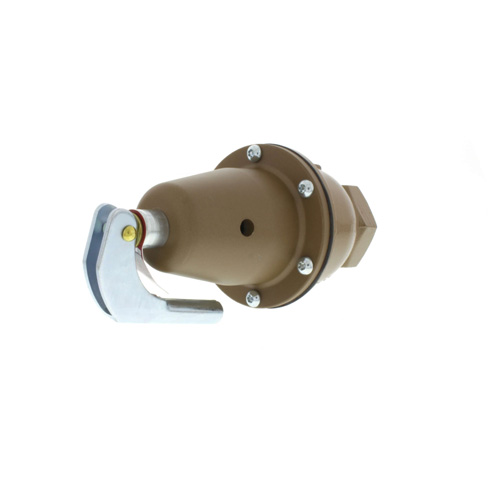

1-1/4" x 1-1/2" Boiler Pressure Relief Valve (30 psi)
Hover image to zoom

1-1/4" x 1-1/2" Boiler Pressure Relief Valve (30 psi)

Brand:
Watts
SKU:
0383020
Rating:
(17)
Q&A:
(0)
1-1/4" x 1-1/2" Boiler Pressure Relief Valve (30 psi)
Hover image to zoom
0383020 has been discontinued
Discontinued February 21, 2024
This product was discontinued by the manufacturer.
Direct Replacement:
1-1/4" x 1-1/2" Model 740 Boiler Pressure Relief Valve w/ Flood Sensor Connectivity (30 psi)
Brand:
Watts
SKU:
F383020
(17)
In Stock
In Stock
Get 9 Thu, May 23
Fast Track Logo
Order by 6PM, receive 9 by Thursday
VIEW REPLACEMENT
VIEW REPLACEMENT

Product Highlights

Size icon
1-1/4" x 1-1/2"
Pressure Set Point icon
30 psi
Inlet Size icon
1-1/4"
Outlet Size icon
1-1/2"
Material icon
Iron
Thread Type icon
Female Thread Type

Description

This Series 740 Boiler Pressure Relief Valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control.

Features:
  • Seat located above drain; water can't be trapped and sediment can't foul seat.
  • Non-mechanical seat-to-disc alignment will not stick or freeze.
  • Water seal of high temperature resisting material isolates spring working parts from water during relief

Specs

Pressure Set Point:

30 psi

Capacity:

2105000 BTU/hr

Inlet Size:

1-1/4"

Outlet Size:

1-1/2"

Size:

1-1/4" x 1-1/2"

Material:

Iron

Application:

Heating

Thread Type:

Female

Temperature Range (F):

250°F Max

Connection Type:

Threaded

ASME:

Yes
