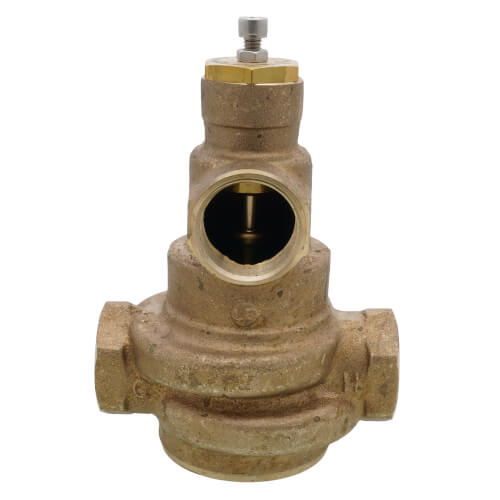

1-1/2" LFN170-M3 Commercial Master Tempering Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,477.54 each
In Stock
Get 3 Wed, Jun 24
Order by today, receive Wednesday
MANUALS (5)
This item replaces: 0274312, 0478022
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1-1/2"
15.65 Cv
180°F Max Temp
90°F Min Temp
90°F - 180°F
Description
–
Watts Series LFN170 hot water master tempering valves are especially designed for use on larger hot water supply systems for mixing hot and cold water for a variety of applications to extend the hot water supply. This series uses paraffin-based thermostat to sense and adjust outlet temperature. The LFN170s feature Lead Free construction to comply with Lead Free installation requirements.
Features
Features
- Lead Free brass body construction
- ASSE 1017 and IAPMO CUPC Listed
- LFN170-M3 uses paraffin-based thermostat to sense and adjust outlet temperature
- Dirt and lime resistant poppet and seat design
- Virtual shutoff if supply pressure fails
- Vandal-resistant locking mechanism to secure temperature setting
- Factory tested
Specs
–
| Flow Capacity (Cv): | 15.65 |
|---|---|
| Temperature Range (F): | 90°F - 180°F |
| Size: | 1-1/2" |
| Material: | Brass |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Max Pressure (PSIG): | 125 |
| Max Temp (F): | 180°F |
| Min Temp (F): | 90°F |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Flow Capacity (Cv)
Temperature Range (F)
Size
Material
Connection Type
CURRENT ITEM
15.65
90°F - 180°F
1-1/2"
Brass
FNPT x FNPT
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
Right valve for the job
Mixing valve for building core water heaters. Reliable, good product.
BC
Colorado
5 years ago
Verified Buyer
Was this review helpful to you?
Right valve for the job
Master mixing valve for building core water heaters. Watts valves are engineered to perform.
BC
Colorado
5 years ago
Verified Buyer
Was this review helpful to you?
Great improvements! Solid valve!
Temperature adjustment is much simpler than the M2 model.
TJ
New York
5 years ago
Was this review helpful to you?
Great Valve!!
Solid improvements from previous model! Much easier to control water temperature.
TJ
New York
5 years ago
Was this review helpful to you?
Great Valve!!
Solid improvements from previous model! Much easier to control water temperature.
TJ
New York
5 years ago
Was this review helpful to you?
I would by this product again
Matched existing pipe work.
jc
NC
7 years ago
Verified Buyer
Was this review helpful to you?
Great value, quick delivery
Well made mixing VALVE
Tom
Ct
9 years ago
Verified Buyer
Was this review helpful to you?
Good Product
Works well.
Jim
USA
15 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: Does this unit require check valves on hot and cold supply?
Asked by Motty 9 years ago
Add your answer
Verified Reply- SupplyHouse Staff0559127 does not include them, but they would be required for an ASSE 1017 installation.
Was this review helpful to you?
Q: How do you adjust this tempering valve?
Asked by anthony 14 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the installation manual under the manuals tab, provided here as well under the section "Temperature Adjustment": http://s3.pexsupply.com/manuals/1270564207973/28792_PROD_FILE.pdf
Was this review helpful to you?
Q: Can this be fixed to a solar water heater considering temperatures soar to high levels? Thanks Stefan Fenech
Asked by stef 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve can only handle water temperatures up to 180°F. If temperatures in a solar-powered system exceed this figure (which they often do), this valve should not be used.
