Description
The LFMMV series can be set to any temperature between 80°F and 120°F with flow rates as low as 0.5 gpm and as high as 12 gpm. This mixing valve series is listed under ASSE Standard 1016 for single fixture applications, ASSE 1017 for hot water source applications and ASSE 1070 for single or multiple fixture applications.

The LFMMV series uses a double throttling design to control both the hot and cold water supply to the mixed outlet. The superior flow characteristics of this valve provide accurate temperature control (3°F) with low pressure drop across the rated flow range.

As an added feature the LFMMV series incorporates integral inlet filter washers and check valves in both the hot and cold water inlets to protect against cross flow.

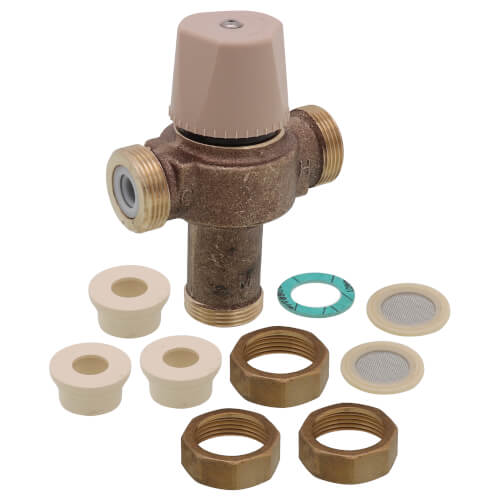

The LFMMV is available with either union thread (-UT), union solder (-US) connections. Adapters can be used to connect to CPVC or PEX end connections.
Hide Description
Manuals (3)
Specs
Size:

1/2"

Lead Free:

Yes

Standards Met:

ASSE 1017

ASSE 1069

ASSE 1070

Application:

Point of Use

Point of Source

Temperature Range (F):

80°F - 120°F

Body Pattern:

3-Way

Connection Method:

CPVC

Connection Type:

CPVC x CPVC

Min Temp (F):

80°F

Max Temp (F):

120°F

×
