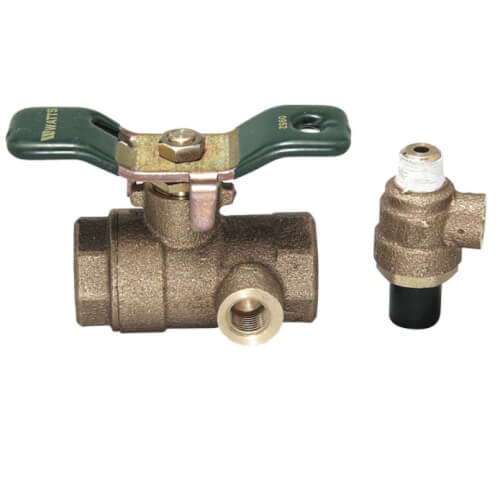

LFFBV-TC-TH 1" 2-Piece Full Port Threaded Ball Valve w/ Test Cock & Tee Handle (Lead Free)

This 1 inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP.

Features

• Two-piece construction
• Excellent for throttling and balancing applications for non-abrasive liquids
• Bronze body construction with chrome-plated brass ball
• Full port for minimal pressure drop

Specifications:

• Ball Material: Brass
• Body Finish: Bronze
• Body Material: Bronze
• Control Type: Tee Handle
• CV Rating: 60 GPM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 350
• Series: LFFBV
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
