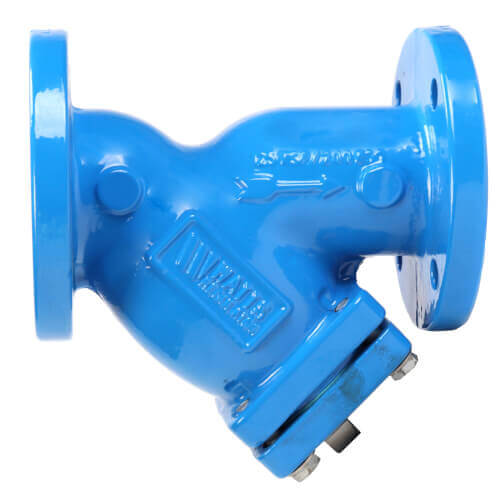

4" 77F Cast Iron Wye Strainer (77F-DI-FDA-125)

77F-DI-FDA-125 2" to 12" (50 to 300mm) with flanged connections and double coated, heat fused FDA approved epoxy coating (interior and exterior) for water service only

Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @140°F (60°C) WOG.

Features

Flanges conform to American National Standards Institute, Class 125 (ANSI B16.1) and WW-S-2739 Type 2

Cast iron body

304 Stainless steel perforated screens

Cast iron flanged retainer cap with gasket tapped for closure plug

Drain/Blowoff connection furnished with closure plug

Series 77F-DI-FDA-125 comes with heat fused FDA approved epoxy coating (interior and exterior)
