Description

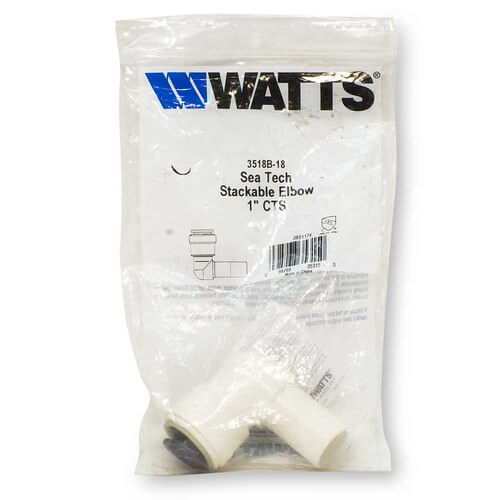

This 1 inch CTS AquaLock plastic stackable elbow works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Product Features
  • No tools required for installation or removal
  • Works with copper, CPVC, PEX, LPDE, MPDE, HDPE and polybutylene tubing
  • 25-year limited warranty
  • Can be used for hot and cold water applications, including behind the wall applications
  • Rotates under pressure
  • Zero-leak connections
Hide Description
Specs
Size:
1"
1" x 1"
PEX Size:
1"
Material:
Polysulfone
Application:
Plumbing
Connection Type:
CTS
Color:
White
Max Temp (F):
75°F
Tubing Compatibility:
OD Controlled Copper
Polybutylene
PEX
CPVC
Fitting System Compatibility:
Push-Fit
Max Pressure (PSI):
100 PSI @ 180°F
250 PSI @ 75°F
Warranty:
25 Year Limited
Standards Met:
CAN/CSA B137.5
ASSE 1061
ASTM F877
NSF
×
