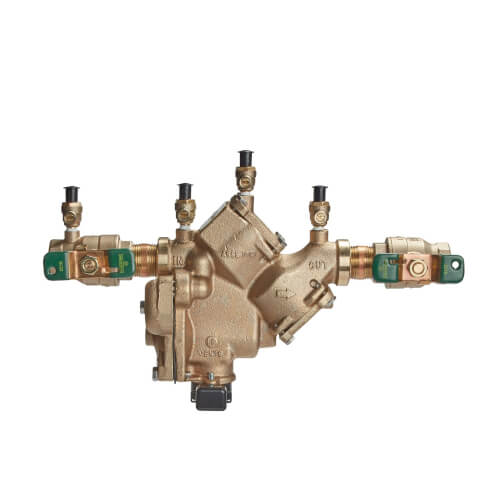

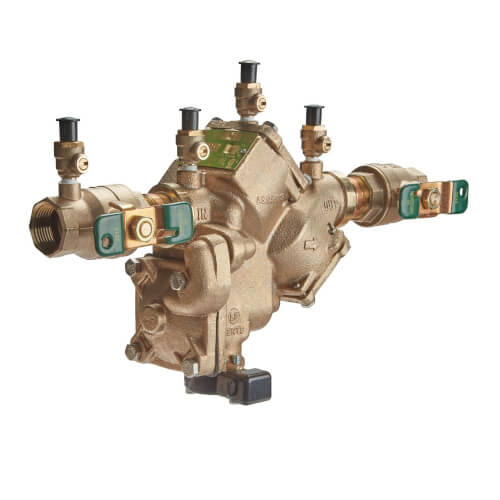

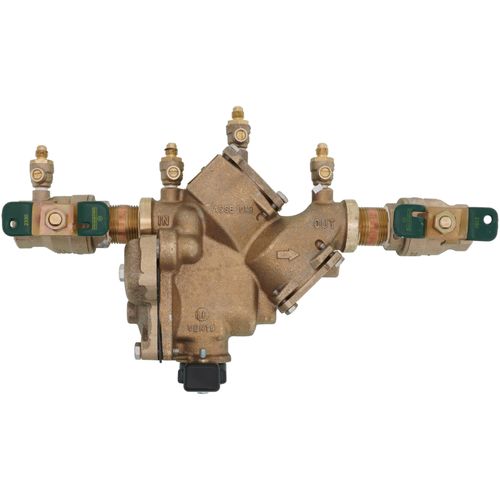

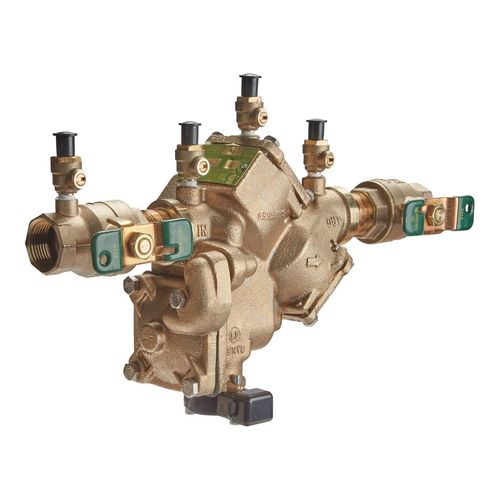

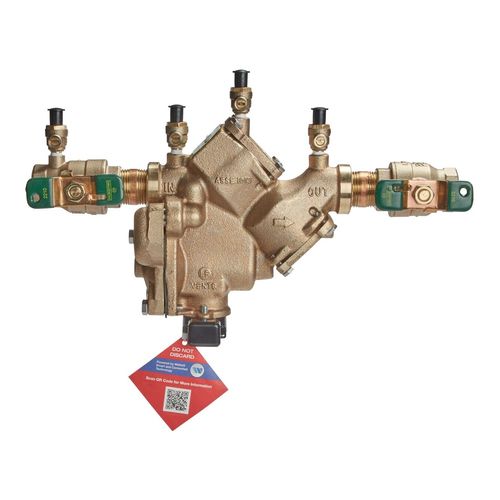

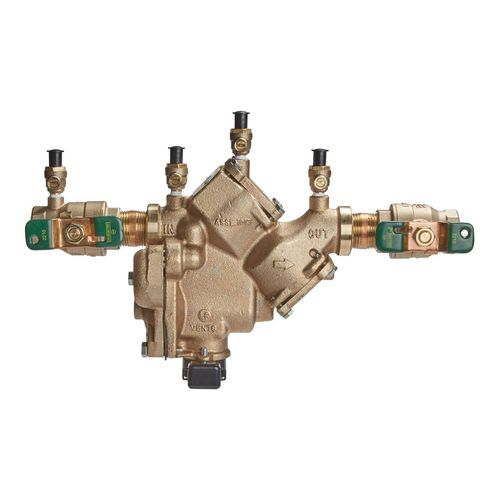

1" LF909QT-FS Lead Free RPZ Assembly

This 1 inch lead free reduced pressure zone backflow preventer assembly with its exclusive design incorporating the patented air-in and water-out principle for protection during an emergency condition prevents the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants. This assembly consists of a lead free body, quarter turn ball valve shutoffs with tee handles, check modules, replaceable seats, top mounted test cocks, and a pressure differential relief valve. It can be installed horizontal or vertical without the need of any special tools. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa(R) platform through Wi-Fi.

Features:

• Features a flood sensor with SentryPlus Alert technology to detect continuous discharge from the relief valve
• Add-on sensor connection kit to extend flood monitoring on compatible assemblies
• Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
• Lead free construction
• Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency conditions
• Compact for easy installation
• Quarter-turn ball valves with tee handles
• Horizontal or vertical (up or down) installation
• Top mounted test cocks

  Specifications:
  • Body Finish: Cast Copper Silicon Alloy
  • Body Material: Lead Free Copper Silicon Alloy
  • Brand: Watts
  • Inlet Connection Size: 1 IN
  • Inlet Connection Size-Metric: 25 MM
  • Inlet Connection Type: Female Threaded
  • Inlet Thread Type: NPT
  • Lead Free: Yes
  • Maximum Temperature-Fahrenheit: 140
  • Minimum Temperature - Celsius: 0.50
  • Minimum Temperature-Fahrenheit: 33
  • Outlet Connection Size: 1 IN
  • Outlet Connection Type: Female Threaded
  • Outlet Thread Type: NPT
  • Part Number: F391009
  • Seat Material: Engineered Plastic
  • Series: LF909 Small
  • ArmorTek Technology: No
  • Backflow Preventer Type: Reduced Pressure Zone Assembly
  • Body Pattern: Inline
  • Bypass: No
  • Cap And Tether: No
  • Disc Material: Silicone
  • Elbow Fitting: No
  • Hazard Protection Level: Health Hazard
  • Hot And Harsh Water: No
  • Hydrant Connection: No
  • Inlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Maximum Working Pressure-BAR: 12.10
  • Maximum Working Pressure-PSI: 175
  • Meter Type: No Meter
  • Outlet Shutoff Valve Type: Quarter Turn Ball Valve
  • Polymer Coating: No
  • Pressure Operation: Continuous
  • Protection Type: Backpressure and Backsiphonage
  • Strainer: No
  • Technologies: Flood Detection
  • Tradename: None
