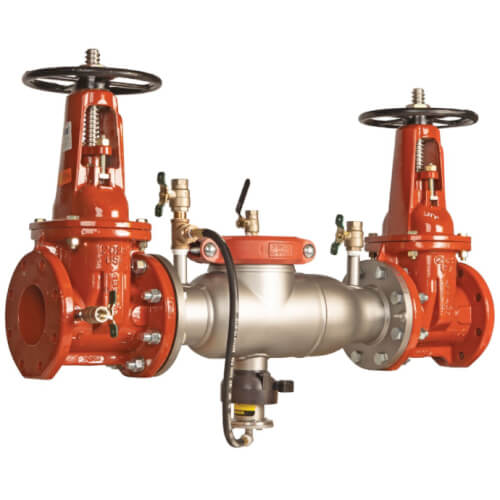

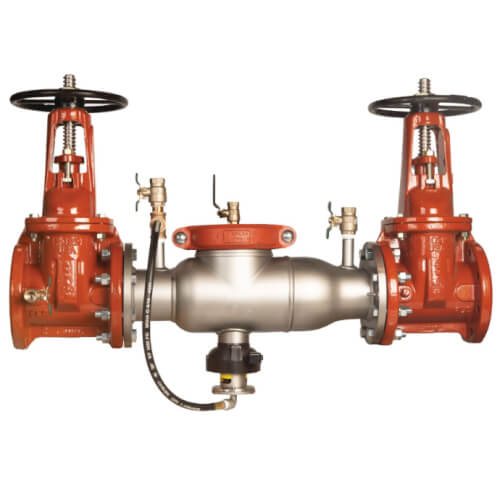

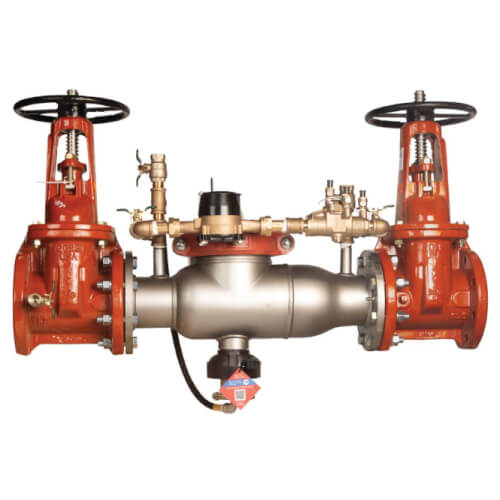

4" 994-OSY-FS Stainless Steel Reduced Pressure Zone Assembly w/ Flood Sensor Connectivity

This 4 inch lead free reduced pressure zone assembly backflow preventer help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. This assembly consists of a short lay length stainless steel body, test cocks, corrosive resistant stainless steel bottom mounted relief valve, torsion spring check valves, and outside stem and yoke resilient seated gate valves. This backflow assembly contains an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Stainless Steel
• Inlet Connection Size: 4"
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 110
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 4"
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: 994-FS
