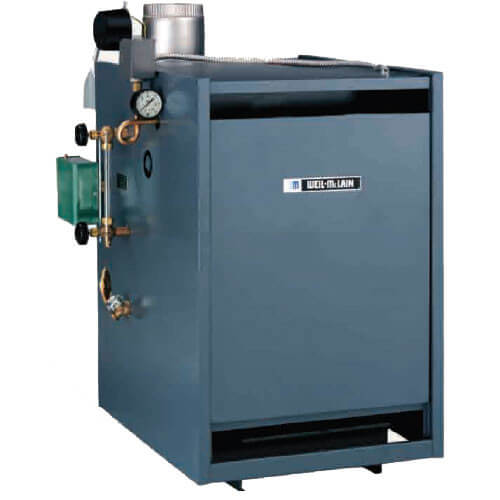

PEG-45 - 93,000 BTU Output Cast Iron Packaged Steam Boiler, Spark Ignition - Series 6 (NG PIDN)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
MANUALS (3)
This item replaces: 119-454-325
Schematic Feature!
Replacement Parts
Lift Gate
–
This product weighs 505 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
10 Year (Heat Exchanger)/ 2 Year (Parts) Warranty
Steam
150000 BTUs
24" Width
33-3/4" Height
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
** Note: Product Name reflects this boiler's IBR Net Output Rating PEG-45 - 93,000 BTU Output Cast Iron Packaged Steam Boiler, Spark Ignition - Series 6 (NG PIDN)
Overview:
** Note: Product Name reflects this boiler's IBR Net Output Rating PEG-45 - 93,000 BTU Output Cast Iron Packaged Steam Boiler, Spark Ignition - Series 6 (NG PIDN)
Overview:
- Factory-assembled and tested
- Factory-assembled section block
- Insulated extended jacket
- Horizontal to vertical draft hood
- Automatic vent damper
- Combination gas valve for 24 volt
- Non-linting pilot burner
- Stainless steel burners
- Electrical junction box
- Spill switch
- Rollout thermal fuse element
- 15 PSI ASME relief valve
- High-limit pressure control
- Low water cutoff-electrode type
- 40 VA transformer
- Steam pressure gauge
- Siphon
- Gauge cocks and glass
- Intermittent electronic ignition system with Weil-McLain UCM universal ignition control module
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| BTU Input: | 150000 |
| Efficiency: | 82% |
| DOE Rating: | 124000 |
| IBR Rating: | 93000 |
| Vent Size: | 6-1/2" |
| Gas Connection: | 1/2" |
| Water Connection: | 1-1/4" |
| System Type: | Steam |
| Weight (lbs): | 505 lbs |
| Width (Inches): | 24" |
| Height (Inches): | 33-3/4" |
| Depth (Inches): | 27-5/8" |
| Features: | EI/Spark Ignition |
| Warranty: | 10 Year (Heat Exchanger)/ 2 Year (Parts) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator
PEG45 PIDN Steam (S6)
Replacement Parts
SKU: 119-454-330
Brand: Weil-McLain
Search Parts:
SEARCH PARTS
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Base Front Access Panel w/ Flame Rollout Switch Bracket: EG, P-EG-40, 45, 451-800-041
451-800-041
Weil-McLainGasket for Cover Plate (Round) for Weil McLain 68 Boiler Section Assembly, 590-317-495
590-317-495
Weil-McLain(7)
Sealer for Sections
591-641-865
Sorry, we don't currently sell this item. Request This Item
Main burner orifice, natural gas, 2.35mm
560-528-991
Sorry, we don't currently sell this item. Request This Item
