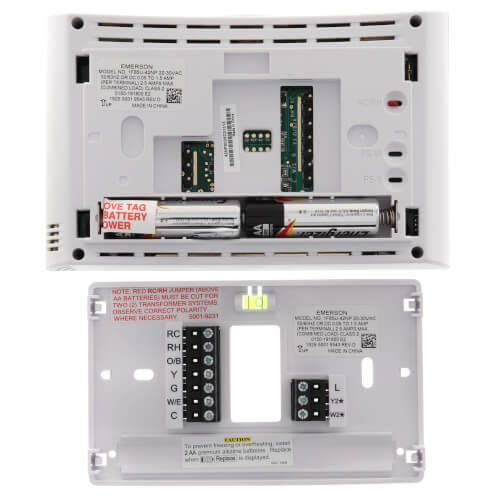

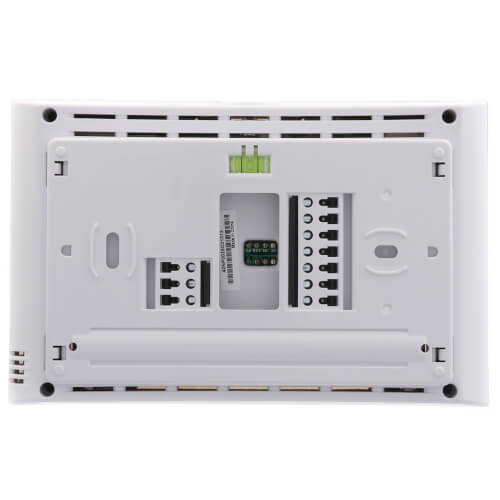

5" Display Universal Non-Programmable Thermostat, 4 Heat/2 Cool
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$62.57 each
In Stock
Get 29 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: 1F83-277, 1F83-0471
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Non-Programmable
24V
4 Heat/2 Cool Heat Pump
Horizontal
Battery, Hardwired
45°F to 99°F
Description
–
5" Display Universal Non-Programmable Thermostat, 4 Heat/2 Cool
- Universal Single Stage, Multi-Stage(2H/2C) Or Heat Pump (4H/2C) with Dual Fuel Option
- Non-Programmable Digital Thermostat with Customizable "Away" Button
- Backlit Display
- 24 Volts Or Millivolt
- System Switch-Heat, Off, Cool
- Auto Changeover, Aux/Emer, Fan Switch-Auto, On
- Keypad Lockout
- Temperature Limits
- Dual Power: Hardwire And/Or Battery
- Batteries Included: 0
- Range 45-99º F
- Terminals- RH,RC,C,W/E,W2,Y,Y2,G,O/B/6,L
Specs
–
| Stages: | 4 Heat/2 Cool Heat Pump |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Power Method: | Battery Hardwired |
| Batteries Included: | 0 |
| Temperature Range (F): | 45°F to 99°F |
| Voltage: | 24V |
| Wiring: | L W2 RH Y Rc O/B/6 W/E C G Y2 |
| Color: | White |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.5 out of 6 reviews
100% would recommend this product
5 star
67%
4 star
17%
3 star
17%
2 star
0%
1 star
0%
Customer Images
Showing 1-6 of 6 reviews
great thermostat that was easy to install!
I had to replace an old obsolete thermostat in my house. The A/C system has multiple zones and is overall a lot more complicated than it needs to be. Supply House was able to cross reference the obsolete thermostat with a compatible new model (this model), and it has worked wonderfully (now I just have to touch up the paint!)! Thank you for a great product!
Richard B
Macon, GA
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
the product did not come with a wall attachment
I am sure this would have been a good thermostat. However, I returned it because the wall mount part was missing—that was a GOOD thing for me. I contacted the phone number in my current thermostat's manual and Omar was amazing and helped me re-program my existing thermostat and alll is well again. When it does go out Omar also gave me the correct replacement numbers to order from SupplyHouse. All is well.
Rubberchickie
MT
2 years ago
Verified Buyer
Was this review helpful to you?
Good display, easy to use
Easy to read display and easy to set functions
Ralph
Tampa Bay
2 years ago
Verified Buyer
Was this review helpful to you?
VERY GOOD THERMOSTAT
I'm a contractor and I use this style "White Rogers". thermostat 90% of the time. They are simple to set up, and very dependable. Wish they would provide a wiring diagram. Would help in certain cases.
Rthalls
Delaware
3 years ago
Verified Buyer
Was this review helpful to you?
I would like to buy this product again
It was very easy to install and it worked write out of the box.
Thank you for fast delivery and yet good quality.
RD
NC
5 years ago
Verified Buyer
Was this review helpful to you?
Performed as expected
Nice looking and easy to install. Performed as expected
Donald
MICHIGAN
7 years ago
Verified Buyer
Was this review helpful to you?
