Description

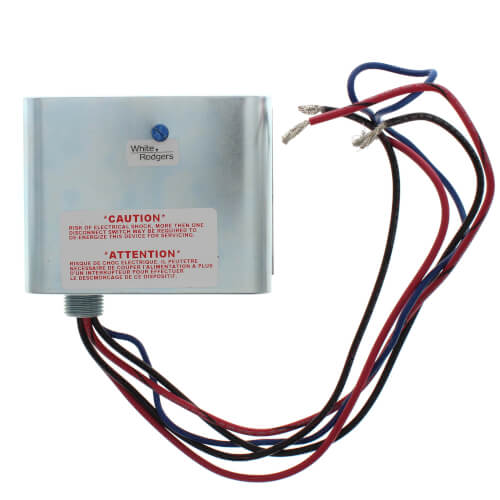

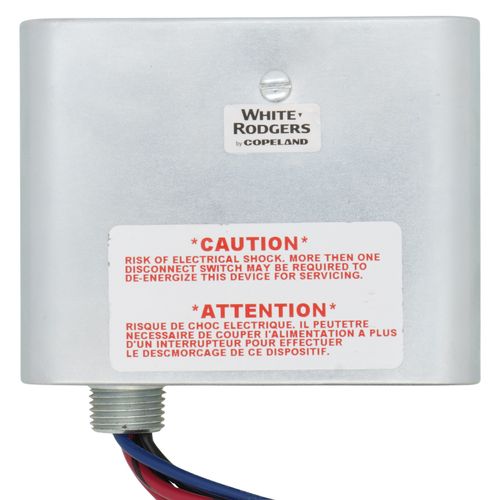

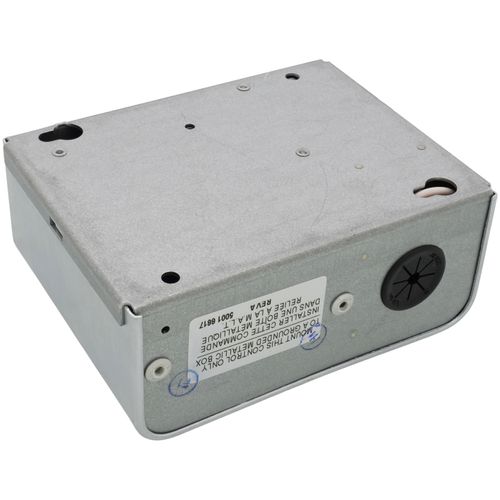

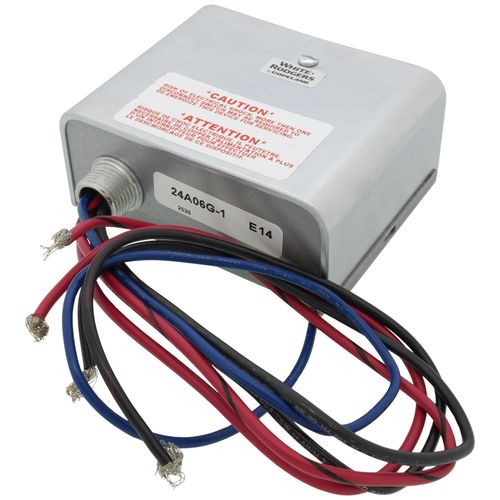

Level-Temp Silent Operator For Low Voltage Control Of Electric Heat

Specifications
  • 240VAC
  • 60Hz Input
  • DPST Normally Open
  • 45 Second Delay


Features
  • Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters
  • Conduit hub or screw mounting
  • Ideal for all types of electrical heat
  • Non-critical mounting angle. Universal break-off mounting tabs
  • Dual Level-Temp capable of controlling two separate loads
Read more
Manuals (2)
Specs
Application:
Electric Heating
Time Delay:
45 Seconds
Wiring:
18" Leadwires
Ambient Conditions:
-20° to 120°F
Voltage:
240v
Hertz:
60
Thermostat Current:
0.2A
Height:
1-7/8"
Width (Inches):
4-1/2"
Depth (Inches):
2-7/16"
A.C. Resistive:
25A
6000W
240v
Type:
DPST
Mount:
Hub
Position:
Normally Open
×
