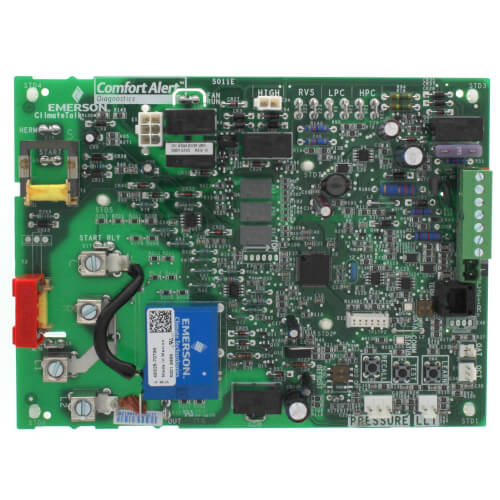

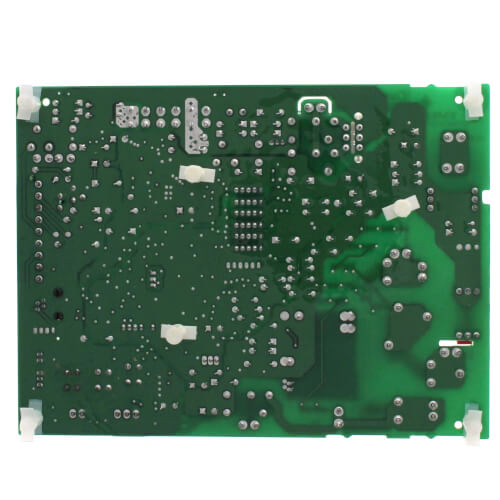

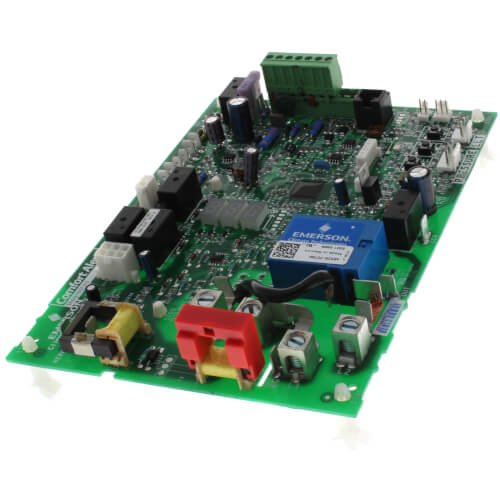

PSC or ECM Two-Stage Air Conditioning/Heat Pump Control
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$236.62 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Two-Stage unitary air conditioning or heat pump control designed for applications with PSC
or ECM outdoor fan motors and single-phase compressors up to 5-ton units. This control is designed to work as part of a fully communicating HVAC system using 4 wires or legacy 24 VAC inputs to support non-communicating systems.
Features:
Features:
- Two-stage applications
- Communicating or legacy 24V
- PSC or ECM outdoor fan motor systems
- Cuttable jumper configuration
- 7 segment system diagnostic LED
- Operating Temperature: -40° to 158°F (-40° to 70°C)
- Electrical Ratings @ 77°F (25°C): Humidity Range - 5% to 70% RH, Input Voltage - 24 VAC, 60 Hz*
- Maximum Input Current @ 25 VAC: 200 amp
- Relay: 33.6 RLA - 175 LRA @ 240VAC
- Outdoor Fan Relay: 2.8 RLA - 5.0 LRA @ 240 VAC
- Crankcase Heater: 0.5 A @ 240 VAC
- Auxiliary Heat: 1 A @24VAC, pilot duty
- Reversing Valve:1 A @24VAC, pilot duty
- 0.5 A @24VAC, pilot duty
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Amana circuit board replacement
The board was a direct replacement and was easy to install. I especially like the new fault indicator where you no longer have to count the blinking LEDs and then decipher the fault. Excellent for a DIYer.
Woody
Las Vegas
2 years ago
Verified Buyer
Was this review helpful to you?
Restored my "communicating" heat pump system.
We have a two-stage heat pump system with a 4-wire communicating thermostat. It allows realtime blower speed control and diagnostics at the T-stat.
Communications started going offline. I tracked it down to the board in the heat pump.
The replacement board was an exact fit mounting on the existing standoffs and wires plugged in on the same terminals in the same location.
Fixed the issue, restored operation, and the best price I could find.
Ordered and within a couple days was delivered to my door.
dg
Kentucky
3 years ago
Was this review helpful to you?
Exact replacement control panel for my Goodman
It fit right in and was an exact fit. Unit is running well.
Josh
Indiana
3 years ago
Verified Buyer
Was this review helpful to you?
Quick service and low price
I was very pleased with how fast the control board was shipped out and the price was the lowest I could find out on the internet.
Bill
Chicago
5 years ago
Verified Buyer
Was this review helpful to you?
