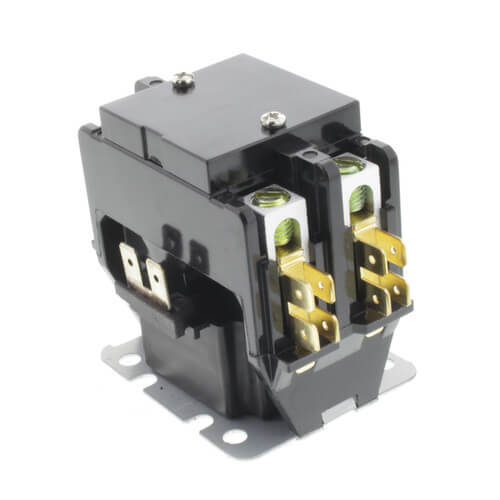

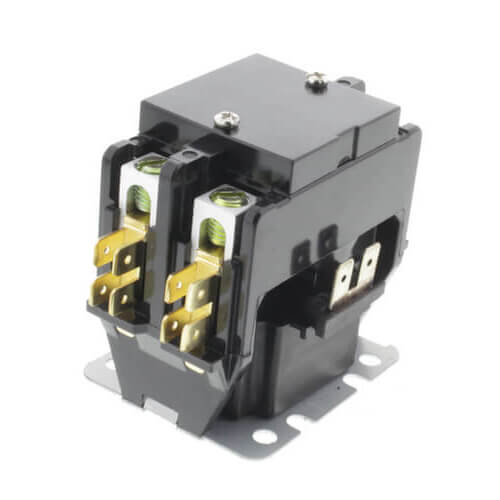

2 Pole Contactor, Type 122, 120 VAC Coil, 30 Amp Contacts, 224 Ohms DC Resistance, 50 mA
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$19.26 each
In Stock
Get 12 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
-40°F to 150°F
Plate
120v
30 Amps
Description
–
Specifications
Features
- 2 Pole Contactor
- Type 122
- 120 VAC Coil
- 30 Amp Contacts
- 224 Ohms DC Resistance
- 50 mA
- 6 VA (Nominal)
- Maximum 32 VA (Inrush)
Features
- Low VA coil for cooler operation and increased life
- Quiet operation
- Universal style mounting bracket fits existing mounting holes
- Double break contacts ensure positive make and break
- Screw terminals or pressure connectors and double 1/4" quick connects provided on all models for easy installation
Specs
–
| Poles: | 2 |
|---|---|
| Application: | Air Conditioning Heating |
| Temperature Range (F): | -40°F to 150°F |
| Mount: | Plate |
| Type: | Double Pole Definite Purpose |
| Voltage: | 120v |
| Hertz: | 60 50 |
| DC Resistance: | 224 |
| Weight: | 9.5 oz |
| mA: | 50 |
| Wiring: | 1/4" Quick-Connect Terminals Pressure Connects |
| Duty: | Continuous |
| Amperage: | 30 |
| Inrush: | 32 |
| Electrical Ratings (AFL): | 30 A @ 277 Vac 30 A @ 480 Vac 30 A @ 600 Vac |
| Electrical Ratings (ALR): | 75 A @ 480 Vac 50 A @ 600 Vac 150 A @ 277 Vac |
| Continuous Resistance: | 40 |
