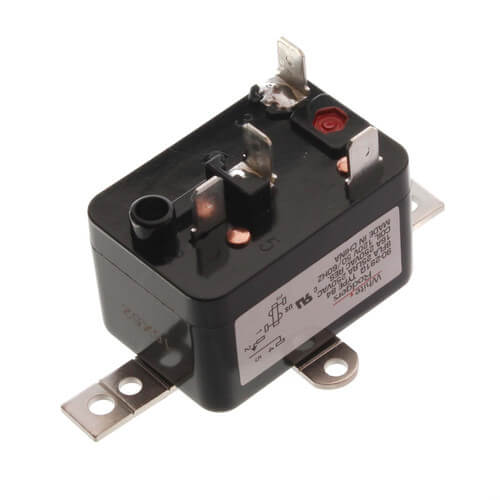

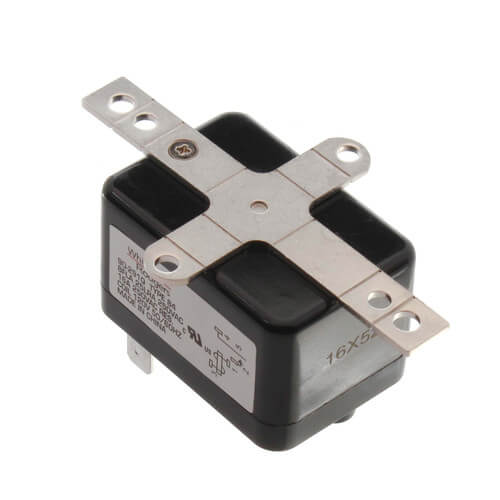

Fan Relay, Type 84, 115/120 VAC Coil, SPNO. Coil Data: 2,000 Ohms DC Resistance, 25 mA (Nominal), 3 VA (Nominal), 4 VA (Inrush)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$12.62 each
In Stock
Get 6 Thu, Jul 9
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
-40°F to 150°F
Description
–
Used for Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads and General Purpose Switching
Features
Features
- Compact, totally enclosed design
- For heating and cooling applications and general switching
- Quiet, reliable and economical
Specs
–
| Application: | Heating |
|---|---|
| Temperature Range (F): | -40°F to 150°F |
| Type: | SPNO |
| Voltage: | 120v |
| Hertz: | 60 50 |
| DC Resistance: | 2000 ohms |
| Weight: | 2.5 oz |
| mA: | 25 |
| Inrush: | 4 |
| Duty: | Continuous |
| Electric Connection: | 1/4" Quick-Connect Terminals |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
Product Reviews
4 out of 4 reviews
100% would recommend this product
5 star
75%
4 star
0%
3 star
0%
2 star
0%
1 star
25%
Showing 1-4 of 4 reviews
Ridiculous Warranty policy
Ridiculous Warranty policy. Been buying from them many years but will stop buying
Paul
MN
10 days ago
Verified Buyer
Was this review helpful to you?
Well-known, reputable product
I am using this relay to control an exhaust fan motor, the type of use this relay was meant for. It functions as expected, and based on my experience with this product in the past, I'm sure it will prove to be reliable.
John
Cape Cod, Mass.
9 years ago
Verified Buyer
Was this review helpful to you?
Everything I Expected
Everything I Expected
Tom
Canandaigua NY
11 years ago
Verified Buyer
Was this review helpful to you?
120v coil Relay...
Works well, seems to be well made. I used this relay to run a booster fan and humidifier. Used the 120v line voltage HUM tap rom the control board on furnace to operate coil side, and 120v from main power for load supply. Check part numbers to get correct coil voltage- some are 24v and some 120v
steve
gaithersburg, MD
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can this relay be installed inside furnace near control board?
Asked by tm 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it can be installed there.
