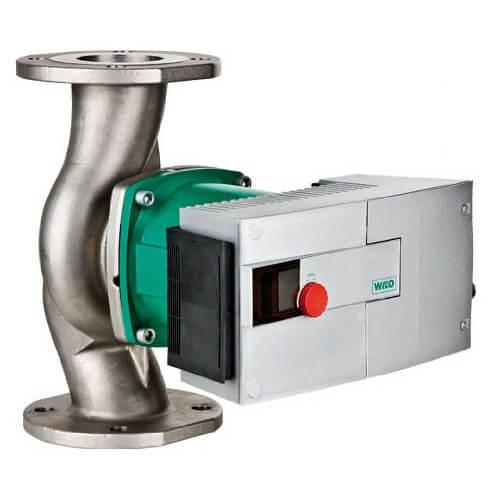

Main product image of Stratos Z 1.25 x 3-25, 1-Phase High Efficiency DHW Circulator, 1/8 HP

Hover image to zoom

Stratos Z 1.25 x 3-25, 1-Phase High Efficiency DHW Circulator, 1/8 HP

Name: Stratos Z 1.25 x 3-25, 1-Phase High Efficiency DHW Circulator, 1/8 HP
Brand: Wilo
SKU: 2163596
Price: 1596.14 USD
Availability: OutOfStock

Brand:

Wilo

SKU:

2163596

Rating:

(0)

Q&A:

(0)

Stratos Z 1.25 x 3-25, 1-Phase High Efficiency DHW Circulator, 1/8 HP

Hover image to zoom

2163596 has been discontinued

Discontinued July 7, 2023

This product was discontinued by the manufacturer.

MANUALS (4)

This item replaces: 2113417-PUMP-ONLY, 2113417

Direct Replacement:

Stratos MAXO-Z 1.25 x 3-25, 1-Phase High Efficiency DHW Circulator

Brand:

Wilo

SKU:2164623

(0)

Order by today, receive 2 by Tuesday

VIEW REPLACEMENT

Product Highlights

–

230V

1/8 HP

Flanged x Flanged Connection

145 MAX PSI

Stainless Steel

14°F - 230°F

Description

–

Uses 2 Bolt 1.25-Inch HV flanges.

ECM motor technology reduces energy consumption by up to 80%

3x higher starting torque than a standard circulator

"Red Button" technology and LED display

On-board diagnostics and data logger

Pump communication with IF (interface) module that can be easily retrofitted: ideal external operation

Fits most standard hydronics applications. Not approved for domestic hot water.

Wilo Stratos wet rotor circulator with EC motor and integrated automatic capacity adjustment.

Great for residences and light commercial applications.

Specs

–

Type:	Var. Speed Pump
Product Type:	Circulator Pump
Material:	Stainless Steel
Horse Power:	1/8
Voltage:	230V
Phase:	1
Temperature Range (F):	14°F - 230°F
Max Pressure (PSI):	145
Connection Size:	1-1/4"
Connection Type:	Flanged x Flanged
Application:	Heating
