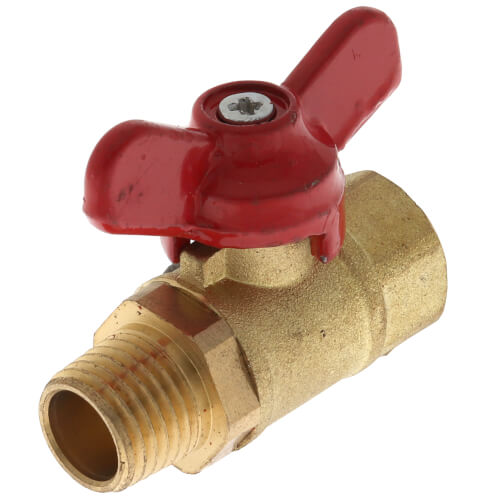

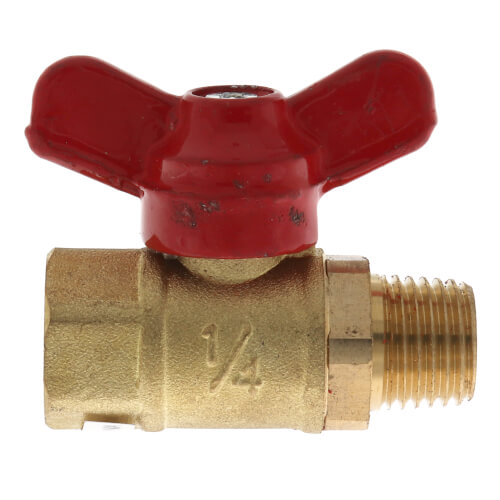

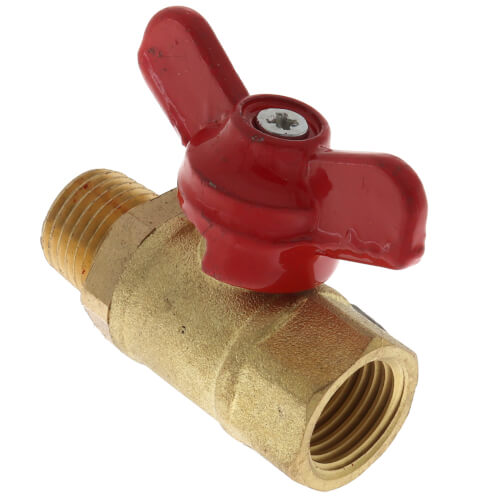

1/4" Female x 1/4" Male SMV Brass Mini Ball Valve w/ T-Handle
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$10.29 each
In Stock
Get 56 Tomorrow, Jun 18
Order by 6PM, receive Tomorrow
MANUALS (2)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x MNPT Connection
Brass
T-Handle
1 Year Warranty
No
Standard Port
Description
–
Description & Features:
Application:
Specifications:
- An economical isolation valve for pressure gauges and transmitters
- Brass or lead free brass wetted parts
- CRN registered
- 1 year warranty
Application:
- Provides flow control for non-corrosive applications including water lines.
Specifications:
- Body - #59-1 forged brass
- Ball - SS
- Gaskets - Teflon
- Handle - Steel, plated, plastic covered
- Process Temperature - -9°F to 212°F (-23°C to 100°C)
- Maximum Operating Pressure - 400 psi (2,758 kPa)
- Connection - 1/4" NPT Female x 1/4" NPT Male 1/4" NPT Female x 1/4" NPT Female
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
Specs
–
| Product Type: | Valve |
|---|---|
| Connection Method: | Threaded |
| Connection Type: | FNPT x MNPT |
| Max Operating Pressure: | 400 psi |
| Material: | Brass |
| Handle Style: | T-Handle |
| Warranty: | 1 Year |
| Features: | Mini Ball Valve |
| Lead Free: | No |
| Port Type: | Standard Port |
