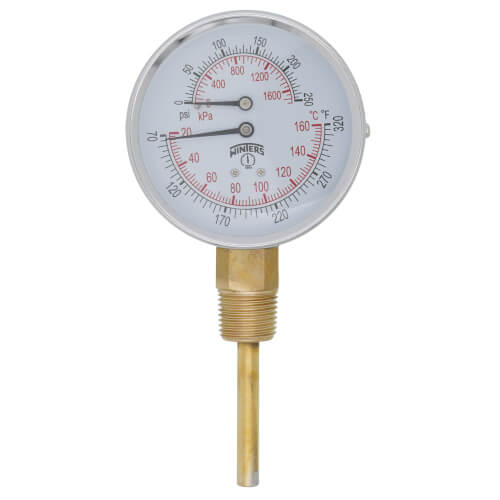

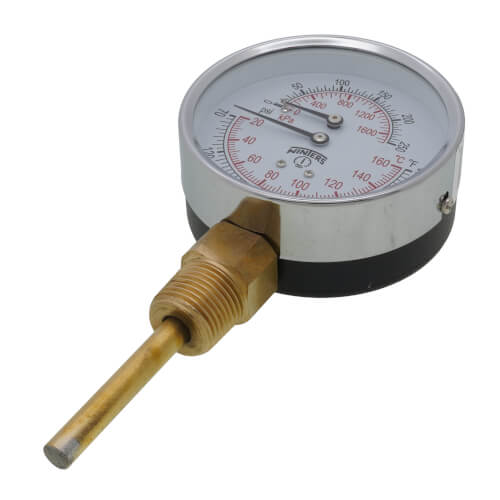

3" TTD Bottom Mount Dual Scale Tridicator (0-250 PSI and 70°F-320°F)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.02 each
In Stock
Get 8 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Threaded Connection
1/2" Connection
160°C Max Temp
20°C Min Temp
70°F Min Temp
320ºF Max Temp
Description
–
Features:
Applications:
Specifications:
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
- Measures both pressure and temperature on the same dial
- 3" (75mm) dials
- Dual scale (°F & °C)
- Bottom connection
- Brass wetted parts
- 2" (50mm) stems
- Multiple pressure and temperature ranges available
- 5 year warranty
Applications:
- Hot water and steam pressure for boilers
Specifications:
- 3" (75mm) aluminum, painted white
- Case - Steel, painted black
- Lens - 2.5" (63mm): Plexiglass
- 3" (75mm): Glass
- Ring - 2.5" (63mm): Acrylic, threaded
- 3" (75mm): Chrome
- Stem - Brass
- Socket - Brass
- Tube - Brass
- Movement - Brass and phosphor bronze
- Sensing Element Temperature: Bi-metallic coil
- Pressure: Bourdon tube
- Pointer - Aluminum, anodized black
- Welding Tin-alloy solder
- Pressure Limit - 75% of full scale range
- Ambient Temperature 23°F to 122°F (5°C to 50°C)
- Process Temperature - 75% of full scale range
- Accuracy - Pressure: ±3-2-3%
- Temperature: ±3% of full scale
- Enclosure Rating IP50
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
Specs
–
| Product Type: | Tridicator |
|---|---|
| Connection Type: | Threaded |
| Dial Size: | 3" |
| Connection Size: | 1/2" |
| Max Temp (C): | 160°C |
| Min Temp (C): | 20°C |
| Min Temp (F): | 70°F |
| Max Temp (F): | 320ºF |
| Temperature Range (F): | 70°F - 320°F |
| Type: | Dry |
| Min Pressure (PSI): | 0 |
| Max Pressure (PSI): | 250 |
| Mount: | Bottom |
| Warranty: | 5 Year |
| Measures: | Celsius Fahrenheit |
