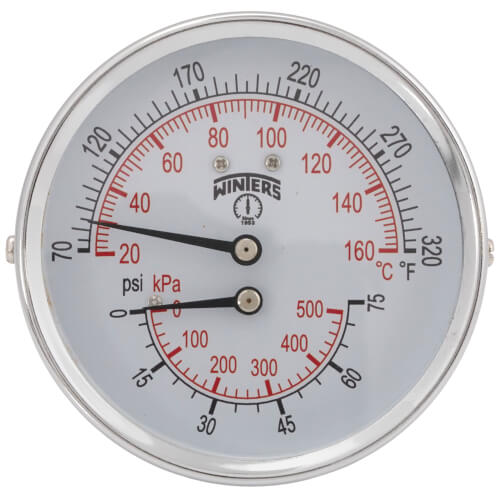

3" TTD Back Mount Dual Scale Tridicator (0-75 PSI and 70°F-320°F)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$49.93 each
In Stock
Get 10 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Threaded Connection
1/2" Connection
160°C Max Temp
20°C Min Temp
70°F Min Temp
320ºF Max Temp
Description
–
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Features:
Applications:
Specifications:
Features:
- Measures both pressure and temperature on the same dial
- 3" (75mm) dials
- Dual scale (°F & °C)
- Back connection
- Brass wetted parts
- 2" (50mm) stems
- Multiple pressure and temperature ranges available
- 5 year warranty
Applications:
- Hot water and steam pressure for boilers
Specifications:
- 3" (75mm) aluminum, painted white
- Case - Steel, painted black
- Lens - 2.5" (63mm): Plexiglass
- 3" (75mm): Glass
- Ring - 2.5" (63mm): Acrylic, threaded
- 3" (75mm): Chrome
- Stem - Brass
- Socket - Brass
- Tube - Brass
- Movement - Brass and phosphor bronze
- Sensing Element Temperature: Bi-metallic coil
- Pressure: Bourdon tube
- Pointer - Aluminum, anodized black
- Welding Tin-alloy solder
- Pressure Limit - 75% of full scale range
- Ambient Temperature 23°F to 122°F (5°C to 50°C)
- Process Temperature - 75% of full scale range
- Accuracy - Pressure: ±3-2-3%
- Temperature: ±3% of full scale
- Enclosure Rating IP50
Specs
–
| Product Type: | Tridicator |
|---|---|
| Dial Size: | 3" |
| Connection Type: | Threaded |
| Connection Size: | 1/2" |
| Max Temp (C): | 160°C |
| Min Temp (C): | 20°C |
| Min Temp (F): | 70°F |
| Max Temp (F): | 320ºF |
| Temperature Range (F): | 70°F - 320°F |
| Max Pressure (PSI): | 75 |
| Type: | Dry |
| Min Pressure (PSI): | 0 |
| Mount: | Back |
| Measures: | Celsius Pressure Fahrenheit |
| Warranty: | 5 Year |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Product Type
Dial Size
Connection Type
Connection Size
Max Temp (C)
CURRENT ITEM
Tridicator
3"
Threaded
1/2"
160°C
You May Also Need
Product Reviews
4.4 out of 5 reviews
100% would recommend this product
5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Part # Confusion
Verify you received the correct part. It appears that there is some inventory issues and you might receive a TTD404 (which has a 2.5" plastic lens & ring and 1/4" NPT connection) instead of the TTD402 (which has a 3.0" glass lens with Stainless Steel ring and 1/2" NPT connection). The label on the bottom of the box says TTD402 but the bar code (628311000023) and Tridicator is a TTD404. I notified Customer Service and now I just noticed that there is additional confusing information in the description of this product. Check the Specs and the product information attachment to insure the correct item is received.
As far as the TTD404 goes, it appears to be a decent temp/pressure gauge and is working fine but had to use a reducing bushing to convert from the 1/2" to the 1/4" NPT.
Hank
Blairstown, NJ
3 years ago
Was this review helpful to you?
Timely and in stock
Supply House had the products i needed in stock and shipped them in a timely manner. I have continued to buy products from them with high levels of satisfaction.
Jared
Fargo, ND
3 years ago
Verified Buyer
Was this review helpful to you?
No problems
This was a drop in replacement for the old gauge on my boiler, which decided to perma-stick at 15psi. I wasn't happy replacing an old "Made in Holland" gauge with a "Made in China" one, but I didn't really have a choice. It works. I've only had it about a month, so I have no idea how long it will last. It's easy to read, and was easy to install. It appears to be accurate, based on the fact that the pressure shows the same as the regular valve is set to, and the temperature displayed matches what the boiler limit switch is set to when it shuts off. What else is there to say? Time will tell if this is good or not.
Peter
Boston, MA
8 years ago
Verified Buyer
Was this review helpful to you?
Good one
Good product & right price
CUT
Springfield, OR
8 years ago
Verified Buyer
Was this review helpful to you?
Works as advertised
Easy to read and install
fishbrew505
Chama, NM
9 years ago
Verified Buyer
Was this review helpful to you?
