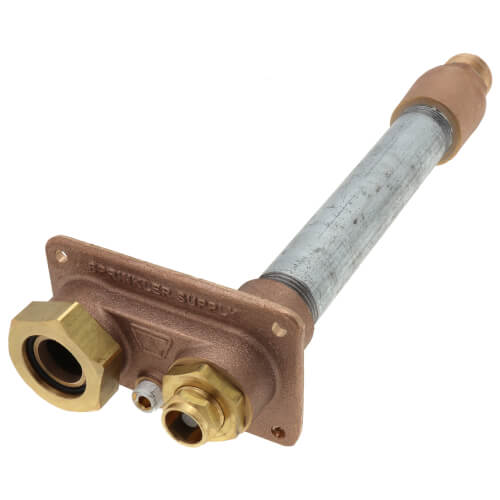

Model 32 10", 3/4 FNPT x 1" MNPT Inlet Freezeless Lawn Sprinkler Wall Hydrant

Overall Length of this product is 11-7/8"". Overall Length is determined by wall thickness plus the inlet length. Please check Submittal Sheet file for details.

The Woodford Model 32 provides outside access to the water supply for easy start-up, winterizing and service. Key-operated with a removable drain plug, it’s also perfect for ponds and other outside water needs. And since everything is right there on the unit, there’s no need for the serviceman to enter the basement or crawl space. Recommend the Model 32 on your next job. It blows other sprinkler supply valves out of the water.

Features:

• Easily removable drain plug allows servicing at any time
• Freezeless* security, key-operated for tamper-resistant protection
• Interfaces with any reduced pressure backflow preventer, double check or pressure vacuum breaker
• 3/4" and 1" inlets/outlets offered
• Can be retrofitted to existing homes and adapted to varying wall thicknesses
• IAPMO Listed
• Inlet and pipe casing fits through a 1-7/8” hole
• Head casting fits flush against wall
• Allows for convenient scheduling by servicing contractors for start-up, servicing, or winterization of lawn sprinkler system without entering the home
• Key operated for tamper resistant protection
• Rough brass exterior finish
• Hardened stainless steel valve stem
• Solid brass operating rod
• 1” Galvanized steel pipe casing
• Red brass castings
• 2 Inlet options:
• - P Inlet: Combination 3/4” FPT & 1” MPT
• - C Inlet: 3/4” copper sweat valve body
• 3/4" Union Outlet Connection Provided
• Optional 1" NPT Union Outlet Connection add feature -1IN
• 1/4” NPT Socket Head manual drain plug
• Max Temperature: 120° F
