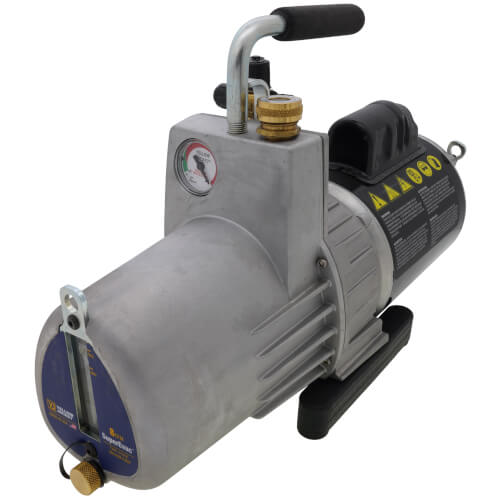

8 CFM Single Phase SuperEvac Vacuum Pump, 60 Hz (115V)

8 CFM Single Phase SuperEvac Vacuum Pump, 60 Hz (115V)

Isolation valve for oil changes without losing vacuum in the system

Built-in vacuum indicator gauge

Wide-mouth oil reservoir port for easier, cleaner filling. The SuperEvac vacuum pump is a highly efficient, two-stage rotary vane oil-sealed pump field-rated at 15 microns or better. The lower the micron rating, the better the pump performance.

Specifications:

• 1/4" and 1/2" Male flare intake
• 43 oz. oil capacity
• 17.5" L x 6" W x 11.5" H
• 32.0 lbs. (14.5 kg)

Features:

• Isolation valve for oil changes without losing vacuum in the system
• Built-in vacuum indicator gauge
• Wide-mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust—threaded to attach garden hose for exhausting to remote location
• Large oil sight glass for easy monitoring of oil level
• Large brass oil drain for easy access to fast oil changes
• Gas ballast valve keeps oil cleaner, longer during evacuation of wet systems
• Internal intake check valve prevents oil backup into the system during a power failure
• Intake filter screen keeps damaging particles from entering the pump
• Heavy duty rotors and bearings
• Heavy duty steel handle with lift hook for well-balanced carrying
• Tethered port caps stay with the pump
• Metal with rubber overlay base for stability
• Made in the USA
