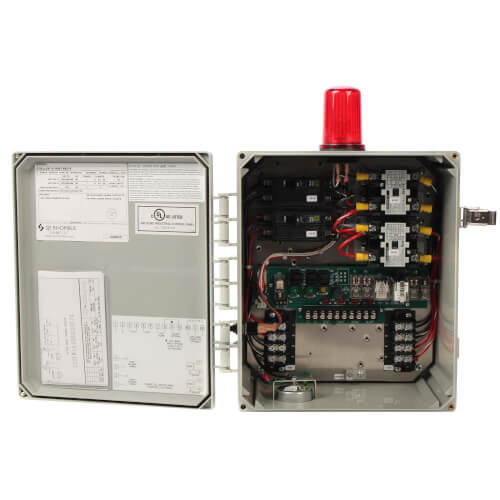

Single Phase Electrical Alternator Duplex Control Panel, 0-20A (NEMA 4 Enclosure)

An Electrical Alternator is used on a duplex pump application where automatic electrical cycling of the pump is desired for added protection in residential or commercial applications. With one pump operating to handle normal flow, a second pump becomes operational in the event the water level continues to rise. The built in alarm system, a standard feature, can be connected to sound when the second pump becomes operational (3 float switch system) or independently (4 float switch system). All electrical systems must be installed by a qualified electrician and according to the National Electrical Code (see section 430-71 through 430-113, plus any others that apply).

Features:

• Hand off auto toggle switch for each pump
• Green pump run pilot light for each pump
• Alarm test and silence switches
• Red pilot light (NEMA 1 only) and audible alarm with 83 to 85 decibel rating for a high water condition
• Red alarm beacon included with NEMA 4X enclosure
• Auxiliary dry contact
• High water alarm
• On single phase - circuit breaker for each pump
• On three phase - motor protective switch with overload protection
• Magnetic starter for each pump
• Alternating mechanism
• Numbered terminal strip for connecting pumps and variable level float switches
• NEMA 1, general purpose or NEMA 4X, watertight enclosures available
• Integral auxiliary terminal board connections (dry contact) for remote alarm devices
• 3 or 4 variable level float switch control operation
• Three 20' float switches included with single phase panels
• 2 year warranty
• The use of off-the-shelf components provide for relatively easy field maintenance and repair
• Float switches not included with three phase panels (see FM0526)
• Refer to FM0712 for correct selection of Electrical Alternator
