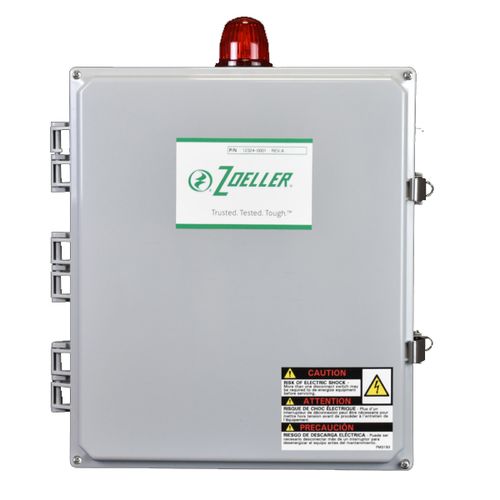

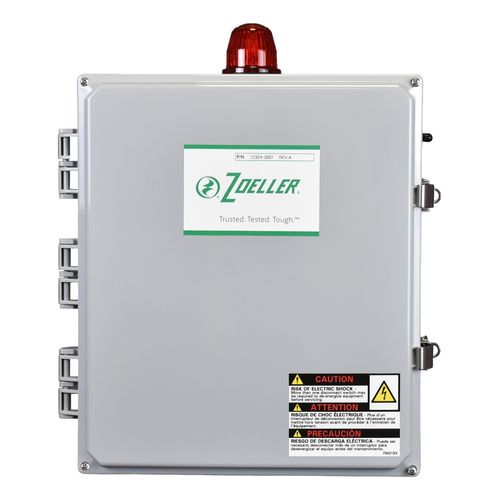

Duplex Pivot Pro Control Panel (9-14 Amp)

The Duplex Pivot Pro Control Panel for 200/230/460 V, 3 Ph lift station pump applications ranging from 9-14 Amps.  The panel comes with an LCD interface and built-in audible and visual alarms. Now you can get Zoeller quality in the whole system by pairing two pumps with our highly featured Pivot Pro Control Panel.  The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.

Features:

• RED/AMBER/GREEN LEDs for float switch indicators, Pump Run, High Water, System Ready, and HOA functions

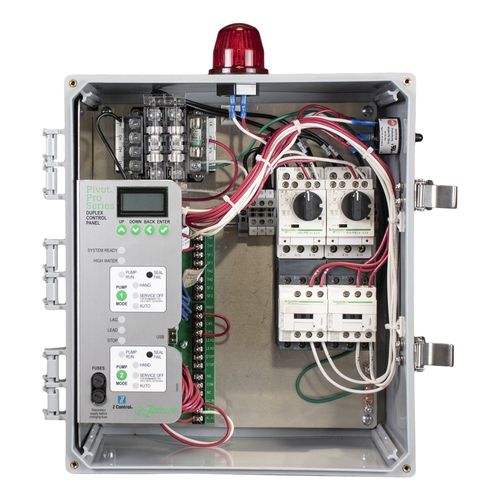

• Ample room within the panel around the terminal block for field wiring
• TEST toggle will check all LEDs, globe, and horn
• Connect your Pivot Pro to the Z Control Cloud using Zoeller's Wi-Fi Gateway, item number 90002-0001
• Lockable LCD menu allows for easy access to status, counters, and settings
• Adjustable settings
• Seal fail indicator/alarm for each pump (feature requires moisture sensor in pump)
• Thermal trip indicator/alarm for each pump (feature requires thermal sensor in pump)
• Lead/lag selector with pump run ratio settings
• Float switch logic choices: Smart or Relay, 3 or 4 float, SLLH or SLHL
• 5-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
