Description

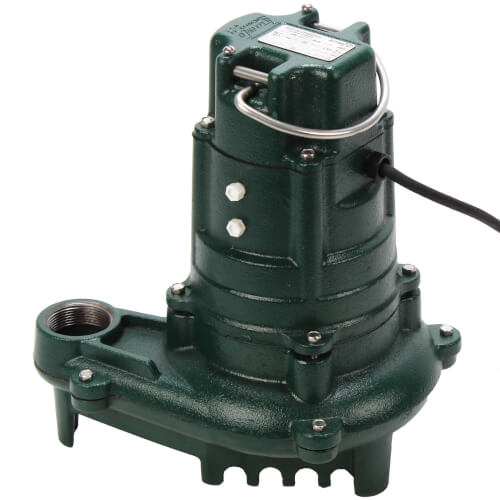

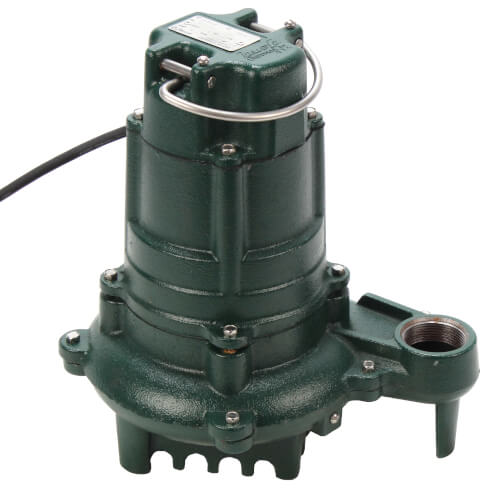

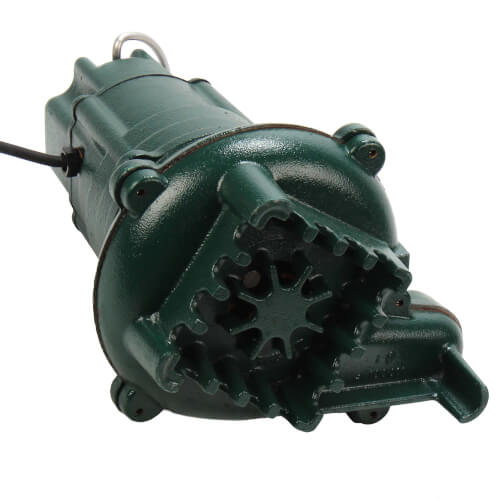

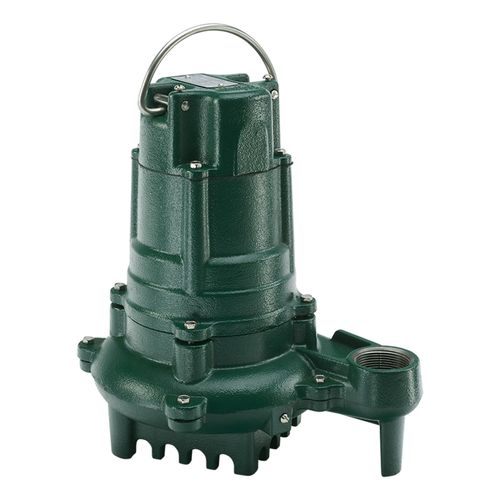

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.

Features
  • Castings - Model 137, all cast iron ASTM class 25, 2500# tensile strength.
  • Corrosion resistant powder coated epoxy finish
  • Durable cast iron construction - switch case motor and pump housing, base and impeller
  • No sheet metal parts to rust or corrode
  • Oil filled and hermetically sealed, automatic reset thermal overload protected (1 Ph) motor
  • Upper and lower sleeve bearings running in bath of oil
  • Carbon and ceramic shaft seal
  • Stainless steel screws, bolts, guard, handle, arm and seal assembly
  • Maximum temperature for effluent or dewatering 130°F (54°C) (extra duty 140°F 60°C)
  • Passes 5/8" spherical solids
  • No screens to clog
  • 1-1/2" NPT discharge (1-1/2" x 2" PVC Adapter fitting included with BN & BE Models)
  • On point: 10"
  • Off point: 2 3/4"
  • Simplex and duplex systems packaged systems available
  • Variable level control systems available designed for heavy duty effluent applications
Pumps must be operated in upright position.
Hide Description
Specs
Type:

Manual

Application:

Plumbing

Material:

Cast Iron

Horse Power:

1/2

Voltage:

115v

Hertz:

60

Flow at 5 FT Head:

93 GPM

Phase:

1

Shutoff Head (ft.):

26'

RPM:

1725

Cord Type:

UL Listed 3-Wire Neoprene Cord & Plug

Cord Length:

15'

Amperage:

10.7

×
