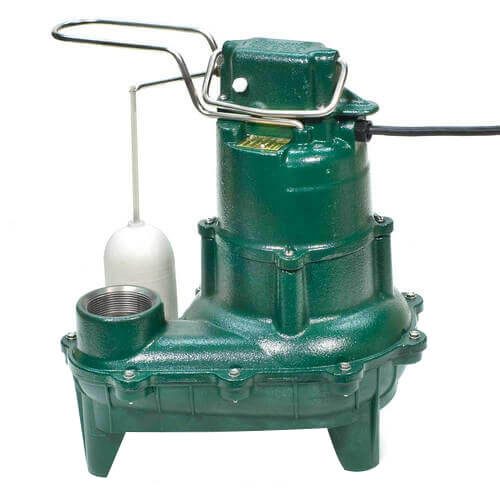

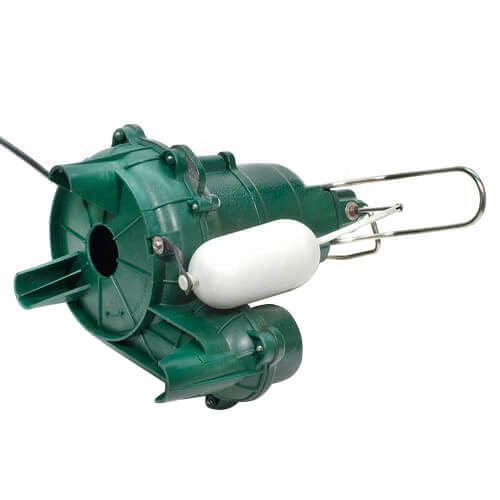

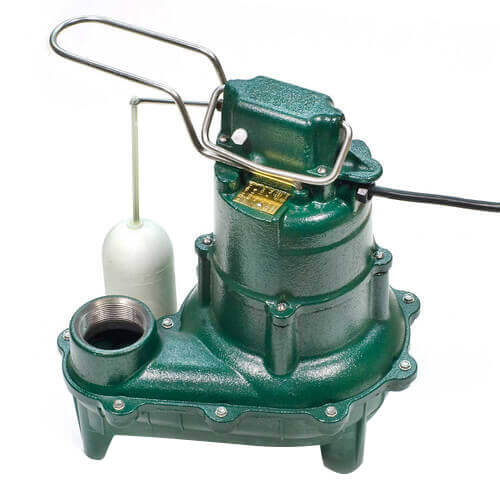

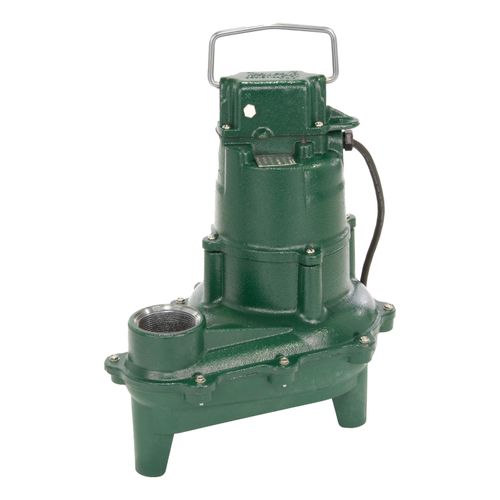

Model E264 Waste-Mate Non-Automatic Cast Iron Sewage Pump - 230 V, 0.4 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$482.25 each
Out of Stock
Get it Thu, Jun 15 - Thu, Jun 22
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230v
90 GPM
4/10 HP
15'
2"
Cast Iron
Description
–
Please Note: Float Switch is not included with this unit (must be purchased separately)
Submersible sewage/*effluent or dewatering pump
Features:
*May be used in those states where codes do not restrict solids size in effluent systems.
NOTE: Image is representative. Actual product may vary from image depicted.
Submersible sewage/*effluent or dewatering pump
Features:
- Float operated, submersible (NEMA 6) 2 pole switch
- Durable cast iron construction - switch cap, motor and pump housing
- Engineered plastic base

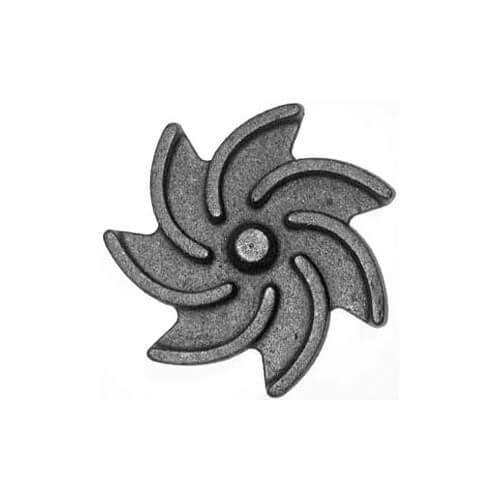

- Engineered, glass-filled plastic non-clogging vortex impeller w/ metal insert
- Stainless steel screws, bolts, handle, guard, arm and seal assembly
- Corrosion resistant powder coated epoxy finish
- Hermetically sealed, automatic reset thermal overload protection
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Passes 2" spherical solids
- 2" NPT discharge
- On point: 12-1/2"
- Off point: 4-1/2"
- Simplex and duplex systems available
- Minimum recommended basin size simplex: 18" x 30", duplex: 30" x 36"
- Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
*May be used in those states where codes do not restrict solids size in effluent systems.
NOTE: Image is representative. Actual product may vary from image depicted.
Specs
–
| Type: | Manual |
|---|---|
| Application: | Sewage Waste Transfer Effluent Sewage |
| Material: | Cast Iron |
| Horse Power: | 4/10 |
| Voltage: | 230v |
| Amperage: | 4.7 |
| Phase: | 1 |
| RPM: | 1725 |
| Cord Length: | 15' |
| Cord Type: | UL Listed, 3-Wire Cord & Plug |
| Height: | 14-3/4" |
| Flow at 5 FT Head: | 90 GPM |
| Flow at 10 FT Head: | 60 GPM |
| Flow at 15 FT Head: | 23 GPM |
| Shutoff Head (ft.): | 18' |
| Approvals: | UL/CSA |
| Weight (lbs): | 34.5 LBS |
| Discharge: | 2" |
| Solids Size: | 2" |
