Description

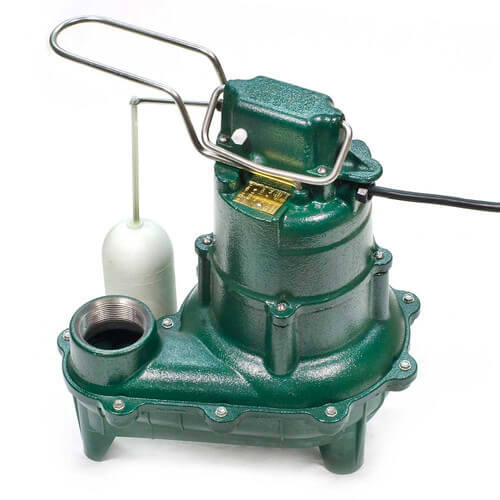

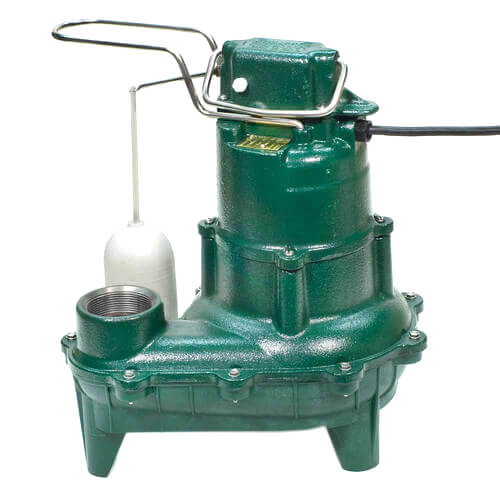

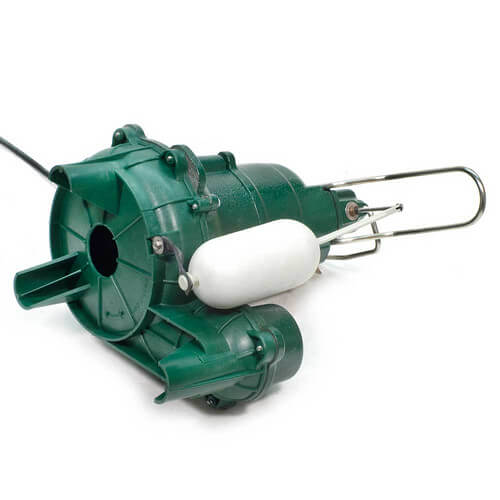

Submersible sewage/*effluent or dewatering pump. This model includes 15' piggyback variable level float switch

Features:
  • Float operated, submersible (NEMA 6) 2 pole switch
  • Durable cast iron construction - switch cap, motor and pump housing
  • Engineered plastic base

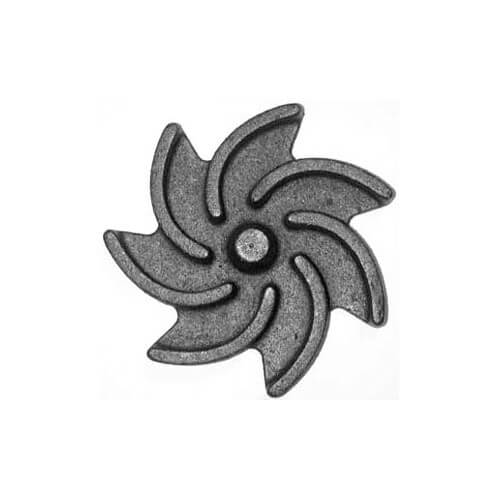

  • Engineered, glass-filled plastic non-clogging vortex impeller w/ metal insert
  • Stainless steel screws, bolts, handle, guard, arm and seal assembly
  • Corrosion resistant powder coated epoxy finish
  • Hermetically sealed, automatic reset thermal overload protection
  • Upper and lower sleeve bearings running in bath of oil
  • Carbon and ceramic shaft seal
  • Passes 2" spherical solids
  • 2" NPT discharge
  • On point: 12-1/2"
  • Off point: 4-1/2"
  • Simplex and duplex systems available
  • Minimum recommended basin size simplex: 18" x 30", duplex: 30" x 36"
  • Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

*May be used in those states where codes do not restrict solids size in effluent systems.

NOTE: Image is representative. Actual product may vary from image depicted.
Read more
Specs
Type:
Automatic
Application:
Sewage
Sewage Waste Transfer
Effluent
Features:
Includes Piggyback Variable Level Float Switch
Material:
Cast Iron
Horse Power:
4/10
Voltage:
230v
Amperage:
4.7
Phase:
1
RPM:
1725
Cord Length:
15'
Cord Type:
UL Listed 3-Wire Cord & Plug
Height:
14-3/4"
Flow at 5 FT Head:
90 GPM
Flow at 10 FT Head:
60 GPM
Flow at 15 FT Head:
23 GPM
Shutoff Head (ft.):
18'
Approvals:
UL/CSA
Weight (lbs):
34.5 LBS
Discharge:
2"
Solids Size:
2"
×
