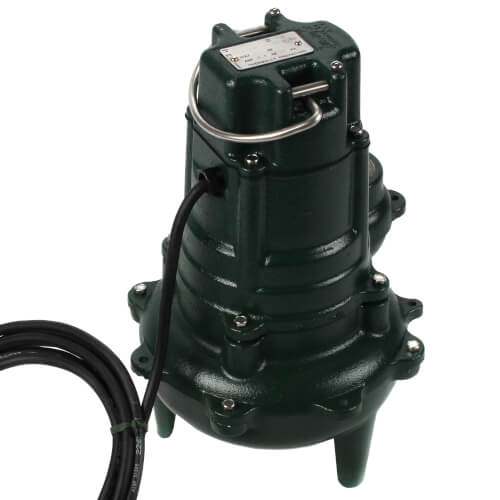

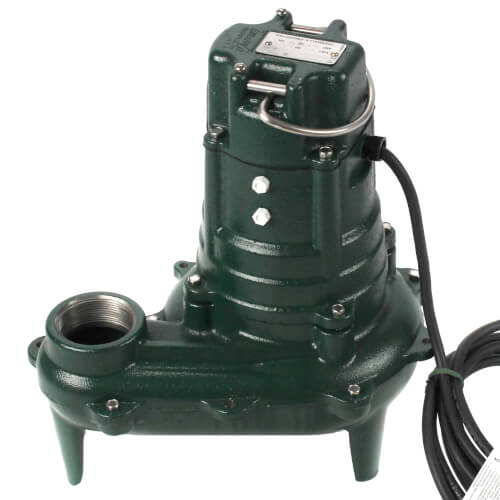

Model E267 Waste-Mate Non-Automatic Cast Iron Sewage Pump - 230 V, 1/2 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$553.50 each
In Stock
Get 8 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
128 GPM
1/2 HP
15'
2"
Cast Iron
Description
–
Please Note: Float Switch is not included with this unit.
One of the following can be purchased separately:
Submersible sewage/*effluent or dewatering pump
Features:
*May be used in those states where codes do not restrict solids size in effluent systems.
One of the following can be purchased separately:
- 10-0035: Switch-Mate Variable Level Float Switch (230V)
- 10-0706: Switch-Mate Variable Level Float Switch w/ 20' Cord (230V)
- 10-1965 : 15' Double Piggyback Variable Level Float Switch (230V)
Submersible sewage/*effluent or dewatering pump
Features:
- Float operated, submersible (NEMA 6) 2-pole mechanical switch
- Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
- Cast iron base on models 267 and 268
- Engineered plastic base on model 266
- Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH).
- Not affected by materials normally found in drainage and sewage pumps
- Stainless steel screws, bolts, handle, guard and arm and seal assembly
- Neoprene square ring & gasket
- Oil-filled, hermetically sealed motor
- Oil lubricated bearings
- Carbon and ceramic shaft seal
- Passes 2" spherical solids
- 2" NPT discharge
- On point: 12" (automatic units); Off point: 4" (automatic units)
- Corrosion resistant powder coated epoxy finish
- Completely submersible
- Watertight and dust tight
- Automatic reset thermal overload protection (1 Phase only)
- Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
*May be used in those states where codes do not restrict solids size in effluent systems.
Specs
–
| Shutoff Head (ft.): | 21.5' |
|---|---|
| Cord Length: | 15' |
| Type: | Manual |
| Application: | Sewage Sewage Waste Transfer Effluent |
| Material: | Cast Iron |
| Horse Power: | 1/2 |
| Voltage: | 230V |
| Amperage: | 5.5 |
| Phase: | 1 |
| RPM: | 1725 |
| Cord Type: | UL Listed, 3-Wire Neoprene Cord & Plug |
| Height: | 14-9/32" |
| Flow at 5 FT Head: | 128 GPM |
| Flow at 10 FT Head: | 89 GPM |
| Flow at 15 FT Head: | 50 GPM |
| Approvals: | UL/CSA |
| Weight (lbs): | 47.5 lbs |
| Discharge: | 2" |
| Solids Size: | 2" |
