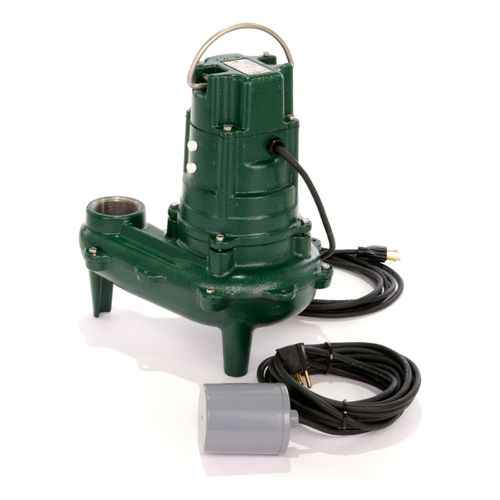

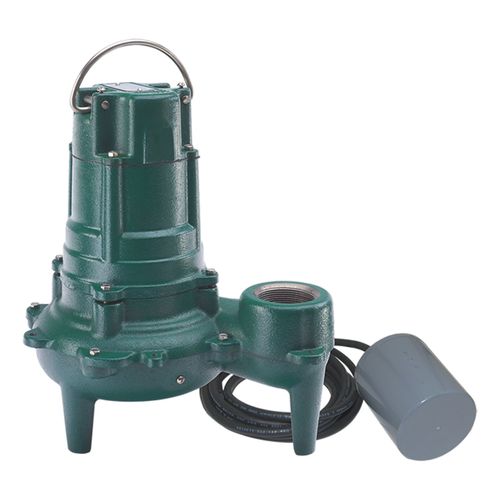

Model BN267 Waste-Mate Cast Iron Sewage Pump w/ Variable Level Float Switch - 115 V
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
This item has a plastic impeller. Submersible sewage/*effluent or dewatering pump.This model includes 15' piggyback variable level float switch.
Features:
- Float operated, submersible (NEMA 6) 2-pole mechanical switch
- Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
- Cast iron base on models 267 and 268
- Engineered plastic base on model 266
- Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH).
- Not affected by materials normally found in drainage and sewage pumps
- Stainless steel screws, bolts, handle, guard and arm and seal assembly
- Neoprene square ring & gasket
- Oil-filled, hermetically sealed motor
- Oil lubricated bearings
- Carbon and ceramic shaft seal
- Passes 2" spherical solids
- 2" NPT discharge
- On point: 12" (automatic units); Off point: 4" (automatic units)
- Corrosion resistant powder coated epoxy finish
- Completely submersible
- Watertight and dust tight
- Automatic reset thermal overload protection (1 Phase only)
- Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Specs
| Cord Length: | 15' |
|---|---|
| Shutoff Head (ft.): | 21.5' |
| Type: | Automatic |
| Application: | Sewage Waste Transfer Sewage Effluent |
| Features: | Includes Piggyback Variable Level Float Switch |
| Material: | Cast Iron |
| Horse Power: | 1/2 |
| Voltage: | 115V |
| Amperage: | 10.4 |
| Phase: | 1 |
| RPM: | 1725 |
| Cord Type: | UL Listed, 3-Wire Neoprene Cord & Plug |
| Height: | 14-9/32" |
| Flow at 5 FT Head: | 128 GPM |
| Flow at 10 FT Head: | 89 GPM |
| Flow at 15 FT Head: | 50 GPM |
| Approvals: | UL/CSA |
| Discharge: | 2" |
| Weight (lbs): | 47.5 lbs |
| Solids Size: | 2" |
Contact
Happy Independence Day!
Product Reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Item ordered is not same as picture
submersible pump
Very reliable
The Right Choice
Great Pump - Great Company!
replacement pump for basement bathroom
Does what it says, so far.
Product Q&A
2 QuestionsQ: Is the impeller on this one the plastic one or does it have the cast iron option? I'm really looking for one using a vlsf with a metal impeller.
Asked by David 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis pump has a plastic impeller, but it is also available with a cast iron impeller (part 267-0057).

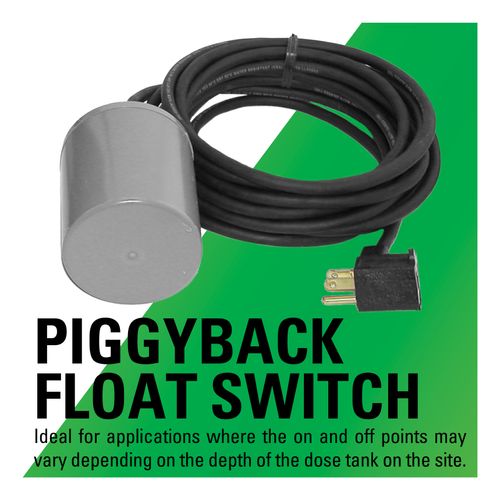

Q: What is the varialbe level float switch for? currently I have Zoeller M267 regular float switch. does the variable switch offer advantage over regular?
Asked by Prashant 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe purpose of the variable level float switch is to increase the capacity or run time for the pump when it is operating. Instead of having a non-adjustable ON and OFF point like the M267. The variable level float allows you to adjust the ON and OFF point to accommodate the volume of water/sewage to be pumped out of the system. The manufacturer recommends a BN/BE model when a pump is going to be used in a residential septic system. The pumps are usually in 1000 gallon tank or larger so it would require a larger volume of water to be pump out and typically the float would be adjusted to the pump off, leaving the pump fully submersed in the water.
The variable level float switch is attached to the end of a 15' cord. Typical application is to mount the cord to the discharge pipe in a septic tank or other holding tank. The float can be installed at any height in the tank and the length from the attachment point sets the turn on and turn off levels for the pump. So therefore it is "variable". If you search a float switch similar to Zoeller 10-0034, you can get an idea of how they are installed and if you need a "variable switch. I think the regular float switch you are referring to is one that is mounted directly on the pump? If that is what you are trying to replace, then you do not want the variable switch.
