Description
Features:
  • Float-operated, 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron switch case and pump housing
  • Cast iron base on models 267 and 268
  • Engineered plastic base on model 266
  • Non-clogging vortex impeller design. Engineered plastic impeller with metal inserts (1 Ph). Model 267 available with cast iron impeller (standard on 3 Ph models).
  • Not affected by materials normally found in drainage and sewage pumps
  • Stainless steel screws, bolts, handle, guard and arm and seal assembly
  • Neoprene square ring and gasket
  • Oil-filled, hermetically-sealed motor
  • Oil-lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2” (50 mm) spherical solids
  • 2” female and 3" NPT male discharge
  • Corrosion-resistant, powder coated epoxy finish
  • Completely submersible
  • Watertight and dust-tight
  • Automatic reset thermal overload protection (1 Ph only)

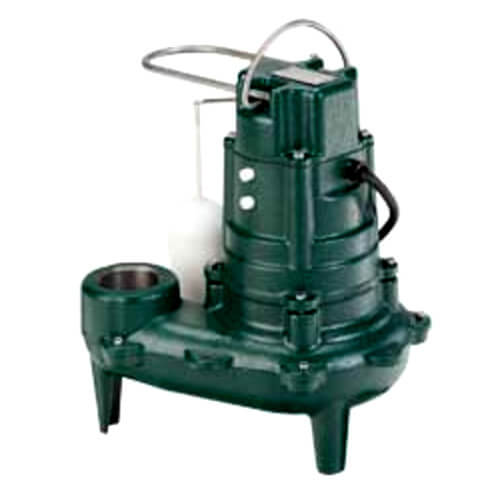

Note: Image may not be actual representation of item.
Read more
Specs
Application:
Sewage
Type:
Manual
Voltage:
208/230v
Horse Power:
1/2
Amperage:
6.2
Hertz:
60
Phase:
1
Seal:
Single
Flow at 5 FT Head:
128 GPM
Shutoff Head (ft.):
21.5'
Cord Length:
15'
×
