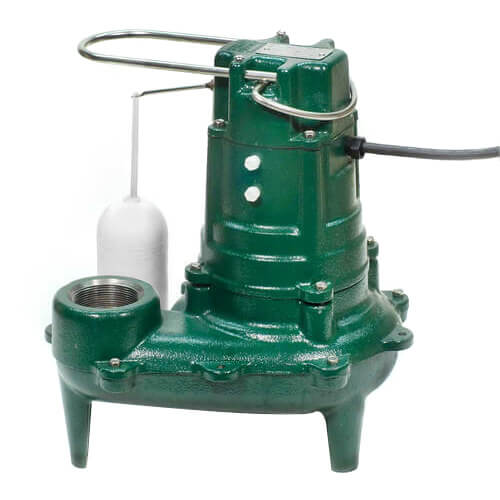

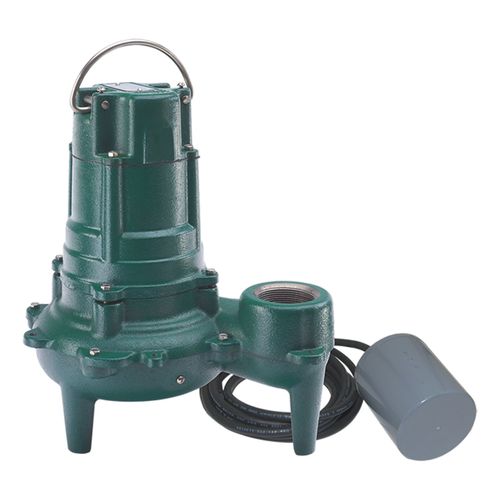

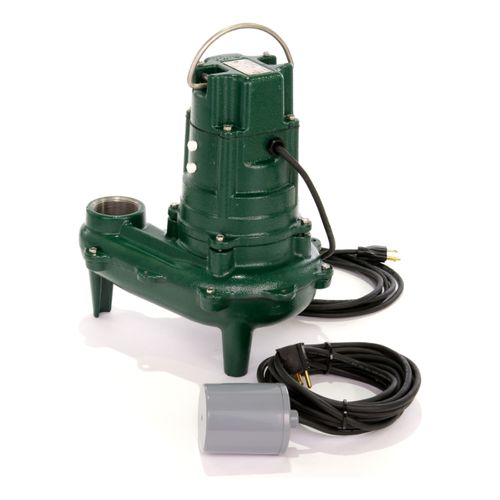

Description
Note: This item has a cast iron impeller

Features:
  • Float operated, submersible (NEMA 6) 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
  • Cast iron base
  • Non-Clogging Vortex Impeller Design. Engineered plastic impeller with metal inserts on models 266, 267 & 268 (1 PH). Model 267 available with cast iron impeller option. (Cast iron impeller standard on 3 Ph models)
  • Not affected by materials normally found in drainage and sewage pumps
  • Stainless steel screws, bolts, handle, guard and arm and seal assembly
  • Neoprene square ring & gasket
  • Oil filled, hermetically sealed motor
  • Oil lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2? (50mm) spherical solids
  • 2? female and 3" NPT male discharge
  • On point: 12? (30 cm) (automatic units)
  • Off point: 4? (10 cm) (automatic units)
  • Corrosion-resistant, powder coated epoxy finish
  • Completely submersible
  • Watertight and dust tight
  • This is an Automatic model packaged with a piggyback variable level float switch
  • Automatic reset thermal overload protection (1 Phase only)
Read more
Specs
Application:
Sewage
Sewage Waste Transfer
Effluent
Type:
Automatic
Material:
Cast Iron
Horse Power:
1/2
Shutoff Head (ft.):
21.5'
Flow at 5 FT Head:
128 GPM
Flow at 10 FT Head:
89 GPM
Flow at 15 FT Head:
50 GPM
Phase:
1
Amperage:
10.4
Voltage:
115v
Cord Length:
15'
Approvals:
UL/CSA
Solids Size:
2"
Discharge:
2"
Weight (lbs):
47.5 lbs
×
