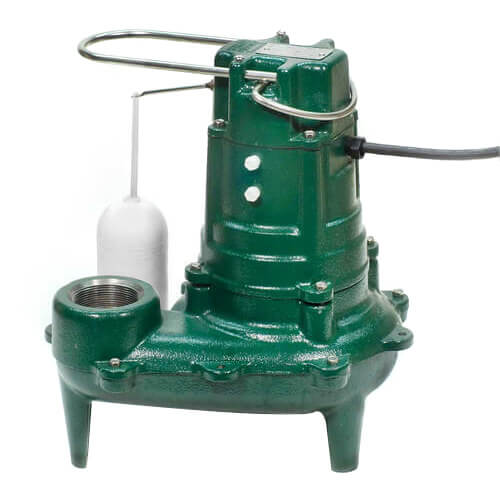

Model M267 Waste-Mate Automatic Cast Iron Sewage Pump, 115 V, 1/2 HP, w/ Cast Iron Impeller & 25' Cord
Hover image to zoom

Model M267 Waste-Mate Automatic Cast Iron Sewage Pump, 115 V, 1/2 HP, w/ Cast Iron Impeller & 25' Cord

Brand:
Zoeller
SKU:
267-0077
Rating:
(0)
Q&A:
(0)
Model M267 Waste-Mate Automatic Cast Iron Sewage Pump, 115 V, 1/2 HP, w/ Cast Iron Impeller & 25' Cord
Hover image to zoom
$578.25 each
Backorder
Backorder
Get it Thu, Jan 4 - Thu, Jan 11
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
115V
Flow at 5 FT Head icon
128 GPM
Horse Power icon
1/2 HP
Cord Length icon
25'
Discharge icon
2"
Material icon
Cast Iron

Description

Model M267 Waste-Mate Automatic Cast Iron Sewage Pump, 115 V, 1/2 HP, w/ Cast Iron Impeller & 25' Cord Product Features
  • Float operated, submersible (NEMA 6) 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron, switch case and pump housing
  • Cast iron base on models 267 and 268
  • Engineered plastic base on model 266
  • Non-Clogging Vortex Impeller Design
  • Comes with cast iron impeller
  • Not affected by materials normally found in drainage and sewage pumps
  • Stainless steel screws, bolts, handle, guard and arm and seal assembly
  • Neoprene square ring & gasket
  • Oil-filled, hermetically sealed motor
  • Oil lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2" spherical solids
  • 2" NPT discharge
  • On point: 12" (automatic units); Off point: 4" (automatic units)
  • Corrosion resistant powder coated epoxy finish
  • Completely submersible
  • Watertight and dust tight
  • Automatic reset thermal overload protection (1 Phase only)
  • Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Specs

Type:

Automatic

Application:

Effluent

Sewage Waste Transfer

Sewage

Material:

Cast Iron

Horse Power:

1/2

Voltage:

115V

Amperage:

10.4

Phase:

1

RPM:

1725

Cord Length:

25'

Cord Type:

UL Listed, 3-Wire Neoprene Cord & Plug

Height:

14-9/32"

Features:

Cast Iron Impeller

Flow at 5 FT Head:

128 GPM

Flow at 10 FT Head:

89 GPM

Flow at 15 FT Head:

50 GPM

Approvals:

UL/CSA

Discharge:

2"

Solids Size:

2"

Shutoff Head (ft.):

21.5'
