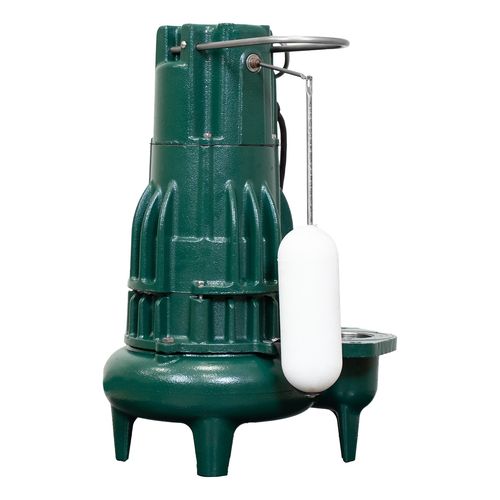

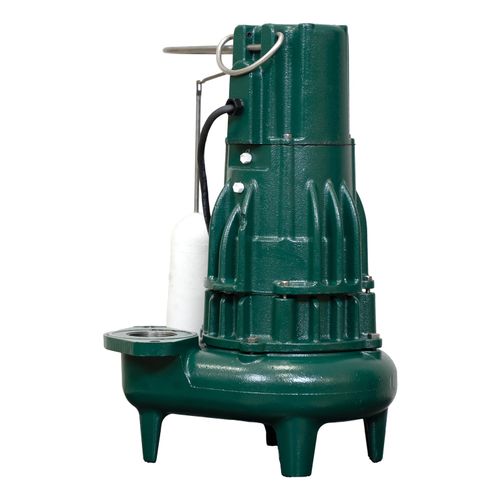

Model CF284 Waste-Mate Automatic Cast Iron Sewage Pump - 230 V, 1 HP, 3 Ph (Single Seal)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,839.75 each
Backorder
Get it Wed, Aug 5 - Fri, Sep 4
MANUALS (4)
Lift Gate
–
This product weighs 84 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
179 GPM
1 HP
15'
2"
Cast Iron
Description
–
Single and double seal submersible sewage or dewatering pumps.
Features:
Features:
- Durable cast iron constructed switch case, motor and pump housing, base and impeller
- No sheet metal parts to rust or corrode
- All cast iron class 25-30 25000# tensile strength
- Stainless steel screws, bolts, float rod, handle, guard and arm and seal assembly
- Shaft seal - Carbon and ceramic rotary face seal, with stainless steel wetted parts
- Upper sleeve bearing and lower ball bearing running in bath of oil
- Maximum temperature for sewage or dewatering 130°F (54°C)
- Oil-filled, hermetically sealed, automatic reset thermal overload protected motor (1 Ph and Auto 3 Ph)
- Cast iron non-clogging vortex impeller
- All models available in 2" or 3" discharge (3" discharge must be special ordered)
- All models pass 2" spherical solids
- Automatic units available with float operated, submersible (NEMA 6) mechanical switch (1 and 3 phase units)
- Corrosion resistant powder coated epoxy finish
- On point: 15-1/4"
- Off point: 5-1/4"
- Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
Specs
–
| Cord Length: | 15' |
|---|---|
| Type: | Automatic |
| Application: | Sewage Waste Transfer |
| Material: | Cast Iron |
| Horse Power: | 1 |
| Voltage: | 230V |
| Amperage: | 5 |
| Phase: | 3 |
| Seal: | Single |
| RPM: | 1750 |
| Cord Type: | UL Listed, 3-Wire Neoprene Cord & Plug |
| Height: | 18-13/16" |
| Width (Inches): | 13-9/16" |
| Flow at 5 FT Head: | 179 GPM |
| Flow at 10 FT Head: | 157 GPM |
| Flow at 15 FT Head: | 133 GPM |
| Approvals: | UL/CSA |
| Discharge: | 2" |
| Solids Size: | 2" |
| Weight (lbs): | 81 lbs |
