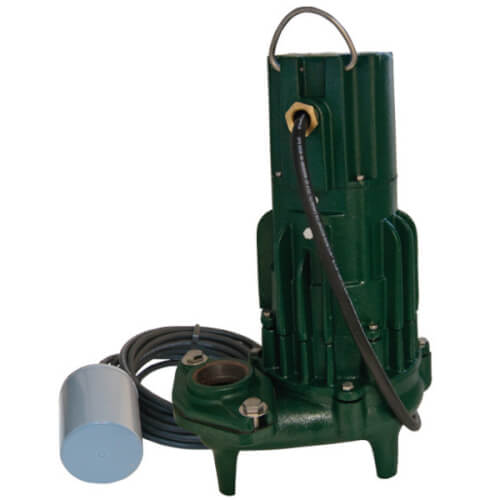

Model BN292 High Head Waste-Mate Cast Iron Sewage Pump w/ Variable Level Float Switch - 115 V, 1/2 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,491.00 each
Backorder
Get it Wed, Aug 5 - Fri, Sep 4
MANUALS (4)
Lift Gate
–
This product weighs 90 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
140 GPM
1/2 HP
20'
2"
Cast Iron
Description
–
Single and double seal submersible sewage or dewatering pumps. Includes 20' variable level float switch
Features:
NOTE: Image is representative. Actual product may vary from image depicted.
Features:
- Durable cast iron constructed switch case, base, motor and pump housing
- No sheet metal parts to rust or corrode
- All cast iron class 25-30 25000# tensile strength
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
- Bronze class 84-8-0-4, non-clogging vortex impeller
- Maximum temperature for sewage or dewatering 130°F (54°C), 120°F (49°C) for WD295
- If over 130°F (54°C), consult factory
- Shaft seal - stainless steel carbon & ceramic rotary
- Corrosion resistant powder coated epoxy finish
- Upper sleeve bearing and lower ball bearing running in bath of oil
- Neoprene square ring & gasket
- All models pass 2" spherical solids
- Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
- On point: 14-3/4"
- Off point: 5"
- 2" NPT female flanged vertical discharge (3" available upon request)
- 100% computerized tested
- Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
NOTE: Image is representative. Actual product may vary from image depicted.
Specs
–
| Cord Length: | 20' |
|---|---|
| Type: | Automatic |
| Application: | Sewage Waste Transfer |
| Material: | Cast Iron |
| Horse Power: | 1/2 |
| Voltage: | 115V |
| Phase: | 1 |
| Seal: | Single |
| RPM: | 3450 |
| Cord Type: | UL Listed, 3-Wire Neoprene Cord & Plug |
| Height (Inches): | 18.5625" |
| Width (Inches): | 12-7/8" |
| Flow at 5 FT Head: | 140 GPM |
| Flow at 10 FT Head: | 124 GPM |
| Flow at 15 FT Head: | 108 GPM |
| Approvals: | UL/CSA |
| Discharge: | 2" |
| Solids Size: | 2" |
| Weight (lbs): | 81 lbs |
| Features: | Includes Piggyback Variable Level Float Switch |
