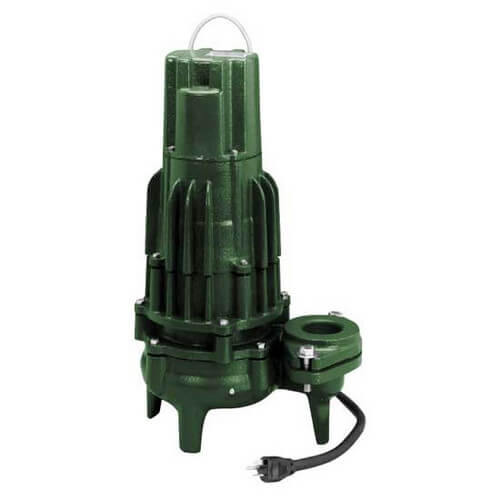

Model F293 High Head Waste-Mate Non-Automatic Cast Iron Sewage Pump - 230 V, 1 HP (Double Seal)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,342.18 each
Out of Stock
Get it Wed, Oct 18 - Fri, Oct 27
MANUALS (2)
Lift Gate
–
This product weighs 89 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230v
1 HP
20'
2"
Cast Iron
7.6 Amps
Description
–
Single and double seal submersible sewage or dewatering pumps.
Features:
Features:
- High Head Waste-Mate Non-automatic 230V, Three phase, 7.6 Amp, 2 HP, 2" discharge, submersible, sewage or dewatering pump.
- Needs piggyback variable level float switch for automatic operation.
- Durable cast construction.
- Cast iron switch case, motor and pump housing, base and impeller.
- No sheet metal parts to rust or corrode. Stainless steel screws, bolts, float rod, handle, guard, and arm and seal assembly.
- UL Listed 3-wire neoprene cord and plug. 20 ft. cord standard. (Plug only comes with standard voltage pump) Longer cord lengths available at extra cost.
- Motor - 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protected.
- Oil lubricated bearings. Passes 2-inch spherical solids. Corrosion resistant powder coated epoxy finish.
- Three phase pumps available at extra cost.
- The sizing of effluent systems normally requires variable level float (s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non-automatic pumps.
Specs
–
| Type: | Manual |
|---|---|
| Application: | Sewage Waste Transfer |
| Material: | Cast Iron |
| Horse Power: | 1 |
| Voltage: | 230v |
| Amperage: | 7.6 |
| Phase: | 3 |
| Seal: | Single |
| RPM: | 3450 |
| Cord Length: | 20' |
| Cord Type: | UL Listed, 3-Wire Neoprene Cord & Plug |
| Height: | 20-7/16" |
| Width (Inches): | 12-7/8" |
| Flow at 15 FT Head: | 118 GPM |
| Approvals: | UL/CSA |
| Solids Size: | 2" |
| Discharge: | 2" |
| Weight (lbs): | 92 lbs |
