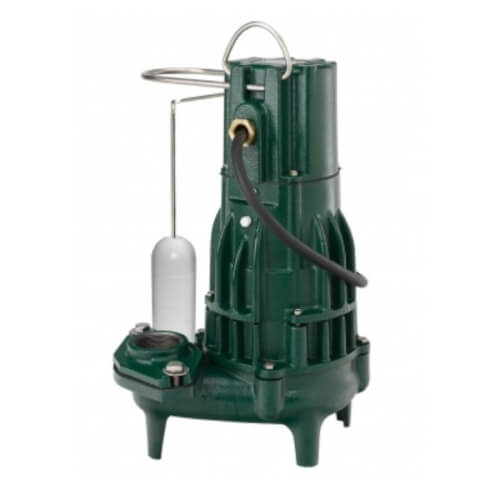

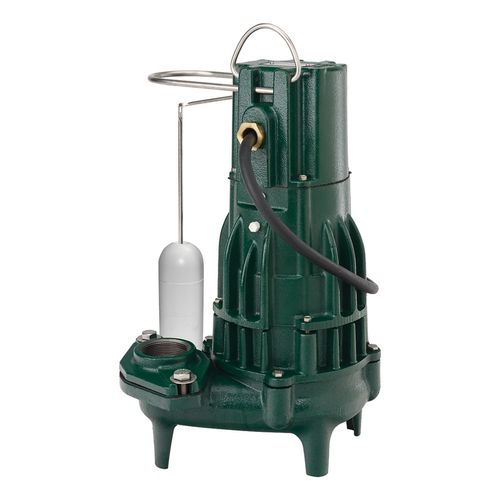

Model D295 High Head Waste-Mate Automatic Cast Iron Sewage Pump - 230 V, 2 HP (Single Seal)

Single and double seal submersible sewage or dewatering pumps.

Features:

• Durable cast iron constructed switch case, base, motor and pump housing
• No sheet metal parts to rust or corrode
• All cast iron class 25-30 25000# tensile strength
• Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
• Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
• Bronze class 84-8-0-4, non-clogging vortex impeller
• Maximum temperature for sewage or dewatering 130°F (54°C), 120°F (49°C) for WD295
• If over 130°F (54°C), consult factory
• Shaft seal - stainless steel carbon & ceramic rotary
• Corrosion resistant powder coated epoxy finish
• Upper sleeve bearing and lower ball bearing running in bath of oil
• Neoprene square ring & gasket
• All models pass 2" spherical solids
• Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
• On point: 14-3/4"
• Off point: 5"
• 100% computerized tested
• Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

NOTE: Image is representative. Actual product may vary from image depicted.
