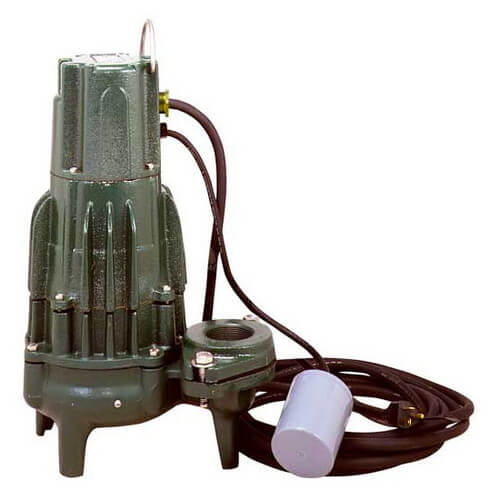

Model WD295 High Head Waste-Mate Automatic Cast Iron Sewage Pump w/ Wired Float Switch - 230 V, 2 HP (Single Seal)
Hover image to zoom
Home
Plumbing Supplies
Pumps
Sewage Pumps & Accessories
Sewage Pumps
Zoeller Sewage Pumps
Zoeller Commercial Sewage Pumps

Model WD295 High Head Waste-Mate Automatic Cast Iron Sewage Pump w/ Wired Float Switch - 230 V, 2 HP (Single Seal)

Brand:
Zoeller
SKU:
295-0040
Rating:
(1)
Q&A:
(0)
Model WD295 High Head Waste-Mate Automatic Cast Iron Sewage Pump w/ Wired Float Switch - 230 V, 2 HP (Single Seal)
Hover image to zoom
$1,664.21 each
Backorder
Backorder
Get it Fri, Jan 5 - Tue, Jan 16

MANUALS (3)

Install Instructions
Product Overview
Brochure
Install Instructions
Product Overview
Brochure

Lift Gate

–
This product weighs 91 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Voltage icon
230v
Flow at 5 FT Head icon
214 GPM
Horse Power icon
2 HP
Cord Length icon
20'
Discharge icon
2"
Material icon
Cast Iron

Description

–
Single and double seal submersible sewage or dewatering pumps. Includes wired float switch

Features:
  • Durable cast iron constructed switch case, base, motor and pump housing
  • No sheet metal parts to rust or corrode
  • All cast iron class 25-30 25000# tensile strength
  • Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
  • Oil-filled, hermetically sealed, automatic reset thermal overload protected (1 Ph only) motor
  • Bronze class 84-8-0-4, non-clogging vortex impeller
  • Maximum temperature for sewage or dewatering 130°F (54°C), 120°F (49°C) for WD295
  • If over 130°F (54°C), consult factory
  • Shaft seal - stainless steel carbon & ceramic rotary
  • Corrosion resistant powder coated epoxy finish
  • Upper sleeve bearing and lower ball bearing running in bath of oil
  • Neoprene square ring & gasket
  • All models pass 2" spherical solids
  • Automatic units available with float operated, submersible (NEMA 6)2-pole mechanical switch
  • On point: 14-3/4"
  • Off point: 5"
  • 2" NPT female flanged vertical discharge (3" available upon request)
  • 100% computerized tested
  • Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Specs

–
Type:

Automatic

Application:

Sewage Waste Transfer

Features:

With Wired Float Switch

Includes Piggyback Variable Level Float Switch

Material:

Cast Iron

Horse Power:

2

Voltage:

230v

Amperage:

17.1

Phase:

1

Seal:

Single

RPM:

3450

Cord Length:

20'

Cord Type:

UL Listed, 3-Wire Neoprene Cord & Plug

Height (Inches):

18.5625"

Width (Inches):

12-7/8"

Flow at 5 FT Head:

214 GPM

Flow at 10 FT Head:

199 GPM

Flow at 15 FT Head:

184 GPM

Approvals:

UL/CSA

Solids Size:

2"

Discharge:

2"

Weight (lbs):

92 lbs
