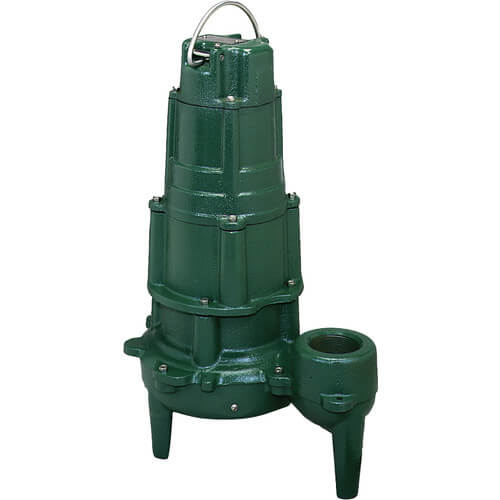

Waste-Mate E4270 Double Seal Manual Sewage/Effluent Pump (230V, 1 HP, 7.5 A)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,032.75 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
132 GPM
1 HP
20'
Cast Iron
7.5 Amps
Description
–
Effluent or dewatering submersible pump for sewage, effluent, and dewatering. This Waste-Mate submersible pump is designed to be used in a variety of septic, sump, and lift station applications and offers a wide range of versatility capable of pumping 2-inch solids up to 29' total dynamic head.
Features:
Features:
- Durable cast construction, ASTM Class 25 cast iron, motor housing cover and pump housing
- Cast iron base on 4270
- Not affected by materials normally found in drainage and sewage sumps
- Stainless steel screws, bolts and handle
- Oil filled, hermetically sealed, automatic reset thermal overload protected motor
- Neoprene square ring & gasket
- Carbon and ceramic shaft seal
- 4270 series double seal pump available
- Upper sleeve bearing and lower ball bearing running in a bath of oil
- Passes 2" (50 mm ) spherical solids
- 2" NPT discharge
- Corrosion-resistant, powder coated epoxy finish
- Models available packaged with a piggyback variable level float switch
- Simplex and duplex systems available
- Packaged systems available
Specs
–
| Cord Length: | 20' |
|---|---|
| Shutoff Head (ft.): | 29' |
| Type: | Manual |
| Phase: | 1 |
| Horse Power: | 1 |
| Material: | Cast Iron |
| Voltage: | 230V |
| Flow at 5 FT Head: | 132 GPM |
| Amperage: | 7.5 |
| Seal: | Double |
| RPM: | 3450 |
