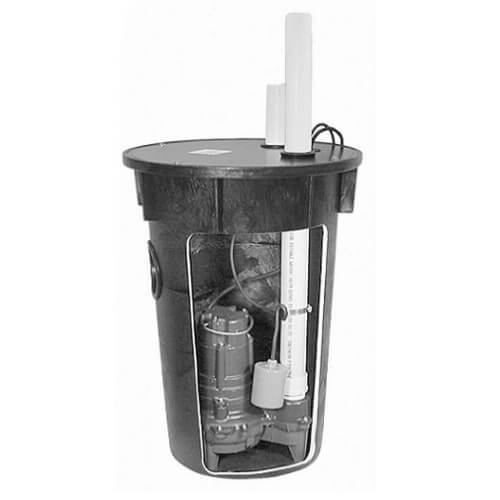

Assembled Sewage Package System, BN266 Pump - Poly-Foam Standard Basin 18" x 30" w/ Alarm

This preassembled Simplex Sewage package is job-ready for a quick and easy installation, saving labor and reducing installation errors. No assembly required. Just drop it in the hole-and-go!

Package includes:

• Manual pump model BN266 (with piggyback variable level float switch)
• 18" x 30" poly-foam-standard basin
• Cover
• 2" PVC discharge pipe, 30" long
• 4" pipe seal hub
• Alarm

  Package Features:
  • 2" solids handling pump
  • Polyethylene structural foam-standard basin
  • 3/16" vent hole drilled
  • All units are properly secured with a 2" PVC discharge pipe in the basins to avoid shifting or upsetting the pump and switch mechanism Pump BN266 Features:
    • Manual, 1/2 HP, 115V, single phase with piggyback variable level float switch
    • Piggyback variable level float switch coverts a manual pump to an automatic pump
    • Non-corrosive engineered plastic motor housing, pump housing, base and impeller
    • Oil filled
    • Float operated, submersible (NEMA 6) 2-pole mechanical switch
    • Durable cast construction
    • Non-clogging vortex impeller design
    • Engineered plastic impeller with metal inserts
    • Not affected by materials normally found in drainage and sewage sumps
    • Stainless steel screws, bolts, handle, guard, and arm and seal assembly
    • Passes 2-inch spherical solids
    • 2” NPT Discharge
