MANUALS (2)
This item replaces: 2-35
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2"
Yes
Cast Bronze
125 MAX PSI
Female Threaded Connection
180°F Max Temp
Description
–
**Lead Free
Application

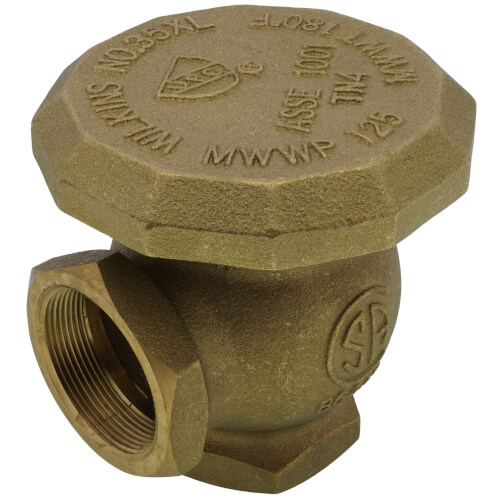

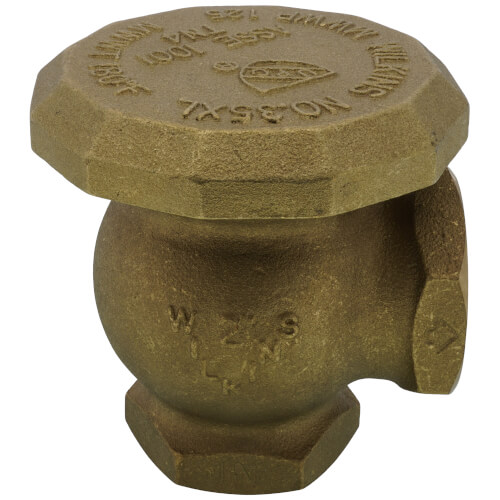

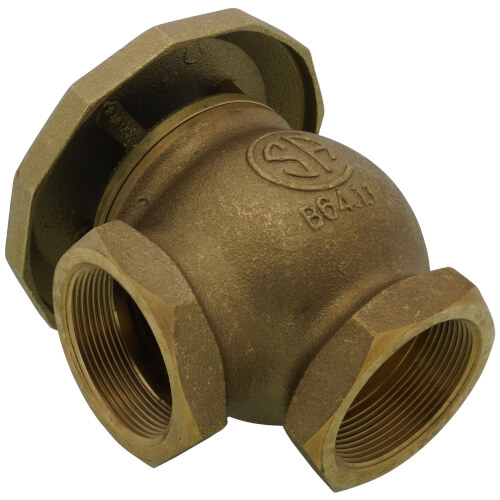

This Wilkins Series 35 atmospheric vacuum breaker is designed for installation on potable water lines to protect against back-siphonage of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.
Standards Compliance
Materials
Application
This Wilkins Series 35 atmospheric vacuum breaker is designed for installation on potable water lines to protect against back-siphonage of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.
Standards Compliance
- ASSE® Listed 1001
- IAPMO® Listed
- CSA® Certified
Materials
- Main valve body: Cast Brass (1/4"-1/2"), Cast Bronze ASTM B 584 (3/4"-2")
- Elastomers: Silicone (FDA Approved), Buna Nitrile (FDA Approved)
- Polymers: ULTEM, NSF Listed (1/4"-1/2"), Polypropylene (3/4"-2")
Specs
–
| Size: | 2" |
|---|---|
| Max Pressure (PSI): | 125 |
| Max Temp (F): | 180°F |
| Application: | Plumbing |
| Material: | Cast Bronze |
| Lead Free: | Yes |
| Height (Inches): | 6.75" |
| Connection Type: | Female Threaded |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Max Pressure (PSI)
Max Temp (F)
Application
Material
CURRENT ITEM
2"
125
180°F
Plumbing
Cast Bronze
Product Reviews
4.67 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Best choice best price
Used for whole house at spot where 65 yr old worn out similar type was.
MtLance
Mesa, AZ
12 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good Product, Does It's Job
Appears to be made out of heavy duty cast Iron. Unit is heavy. I could only find this product here reasonably priced. The original ones plunger cracked and was letting water leak out through its seams. Was over 10 years however, very durable and rugged. With this new one I replaced just the head and its guts. Fixed my problems, no more leaks.
MidniteBlues
Davie, Florida
13 years ago
Verified Buyer
Was this review helpful to you?
JUST WHAT THE DOCTOR ORDERED
Just what I needed to repair sprinkler
mike the mechanic
Hackettstown,nj
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Can this Atmospheric Vacuum breaker be used on a sprinkler system? I have a damaged Pressure Vacuum breaker and trying to replace it.
Asked by Jermey 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis device should never be used in installations that are under continuous pressure. Therefore, never place a shut-off or check valve downstream of AVB's. This device shall not be installed in a concealed or inaccessible location, nor where the venting water from the device during normal functioning may be deemed objectionable. So as long as the sprinkler system does not meet any of these stipulations that should be fine.
