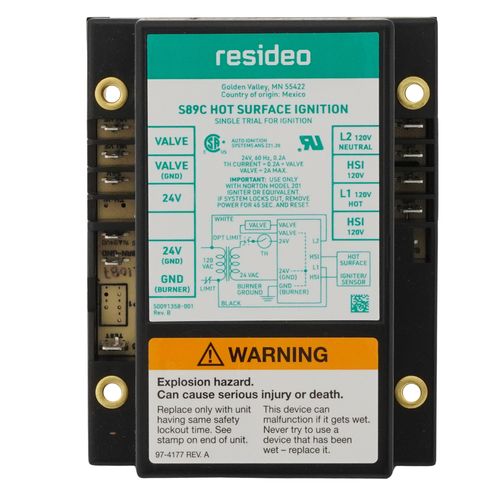

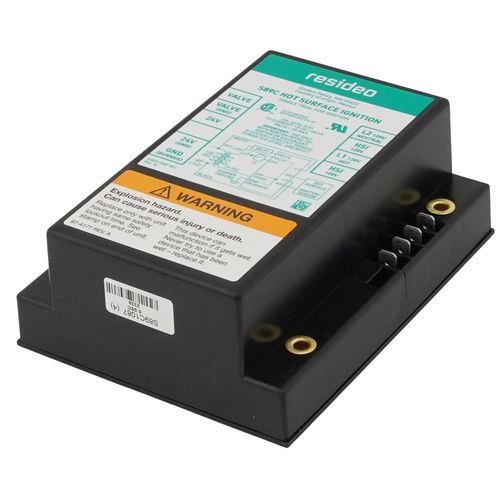

Single Rod Hot Surface Ignition Control w/ 6 sec trial and lockout timing, S89C1087
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
S89C1087 has been discontinued
Discontinued December 10, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces:Â 105393000R
Product Highlights
–
Direct Hot Surface Pilot
Description
–
Provide operating control and system shutdown on loss of main burner flame in direct ignition central heat furnaces and heating appliances with hot surface igniter.
Features
Features
- S89C,G,J are for systems with a combination igniter- sensor.
- S89C lock out after one try for ignition. S89G,H provide three tries for ignition before lockout, with 30 sec. min. purge before second and third tries.
- Compatible with Norton 201 and 271 or equivalent hot surface igniters.
- Available with leadwires for line voltage connections.
- Modules can be used on either natural or LP gas; they provide 100 percent shutoff of gas on lockout.
- Modules have relay contacts for use with any direct ignition gas control with max. 2.0 A, 24 Vat rating.
- Modules use rectification principle for flame sensing. -40 F to +175 F (-40 C to +79 C) temperature rating.
- Description: Provide electronic control of direct hot surface ignition systems used on gas fired furnaces, boilers, and other heating appliances.
- Ignition System Type: Direct Hot Surface Ignition
- Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
- Typical Gas Control: VR8205, VR8305
- Type of Gas: Natural or LP
- Ignition Trials To Lockout: 1
- Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Max Ambient Temperature: -40 F to +175 F
- Flame Failure Response Time: 0.8 sec. @ 5.0 microamp
- Maximum Valve Load @ 24 Vac (Amps): 2A
- Ignition Source:Line Voltage (120 VAC) Hot Surface Element (Norton Model 201)
Specs
–
| Ignition Type: | Direct Hot Surface Pilot |
|---|---|
| Ignition Trial Time: | 6 Seconds |
| Lockout Timing: | 6 Seconds |
| Flame Sense: | Single Rod |
| Pre-Purge Time: | None |
