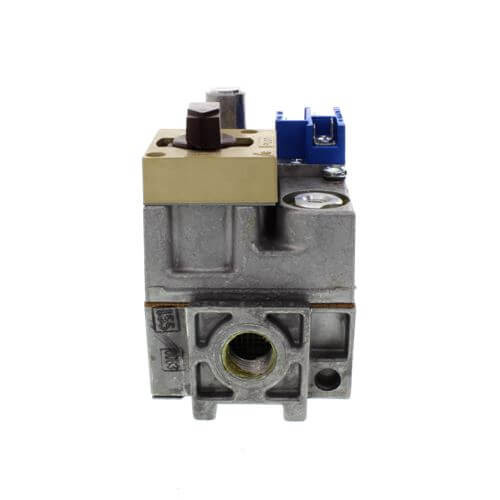

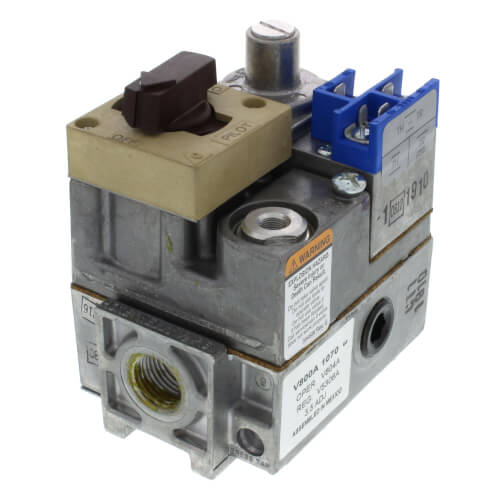

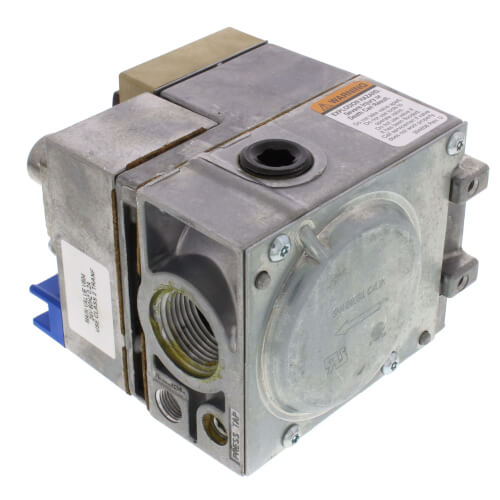

Standard Pilot Gas Valve - 24V - 1/2" x 3/4" Inlet/Outlet Size
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V800A1070 has been discontinued
Discontinued April 10, 2024
This product was discontinued by the manufacturer.
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Suggested Alternative:
Standard Dual Standing Pilot Gas Valve - 1/2" x 3/4", VR8300A3518
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Propane, Natural Gas
1/2", 1/2" NPT
3/4"
250000 BTU Capacity
24V
Standing Pilot
Description
–
Product Overview:
Used on gas fired standing pilot appliances with 30 mV thermocouple. Includes a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.
Product Features:
Product Specifications:
Used on gas fired standing pilot appliances with 30 mV thermocouple. Includes a manual gas valve, safety shutoff, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.
Product Features:
- Includes pilot flow adjustment screw
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff
- Complete safety shutoff on pilot flame failure
- LITE-RITE (OFF-PILOT-ON) lighting sequence
- ECO connector for V800 models
Product Specifications:
- Description: 24 Vac Standing Pilot Gas Valve with 1/2 in. x 3/4 in. inlet\outlet, standard opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Standing Pilot
- Type of Gas: Natural or LP
- Inlet/Outlet Size (in.): 1/2 in. x 3/4 in.
- Body Pattern: Straight-through, multi-tapped with 1/2 in. right and left outlets plugged
- Opening Characteristics (standard, step): Standard
- Capacity @ 1 in. p.d.: 250,000 BTU/hr
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.2A
- Temperature Range (F): 32 F to 175 F
- Temperature Range (C): 0 C to 79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 4 3/4 in high x 4 1/16 in. wide x 3 3/16 in. deep
- Dimensions (mm): 121 mm high x 103 mm wide x 81 mm deep
- Includes: Natural to LP conversion kit, Q340 thermocouple, one 3/4" x 1/2" reducer bushing, one 1/2" x 3/8" reducer bushing
- Approvals, American Gas Association IAS: AGA Design Certified; File No. L2025003, CGA Design Certified; File No. L2025003, UL Component Recognized
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Propane Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 250000 |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 3/4" |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Fuel Type
Voltage
Capacity (BTU)
Inlet Size
Outlet Size
CURRENT ITEM
Propane
Natural Gas
Natural Gas
24V
250000
1/2"
1/2" NPT
1/2" NPT
3/4"
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.8 out of 20 reviews
100% would recommend this product
5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 20 reviews
Perfect Fit
I called to confirm fit and function. Representative was very knowledgeable and helpful.
Pete G
Dix Hill NY
6 years ago
Verified Buyer
Was this review helpful to you?
Easy upgrade
The valve is a direct replacement for the original!
Mwarshe
Bristol, Pa
7 years ago
Verified Buyer
Was this review helpful to you?
Exact replacement part
This part was the exact same part I had on my boiler. Fit perfectly
Timmy2pies
Newport News,Va.
7 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
It was easy to install and all the parts were in the package
Jim
Baltimore md.
9 years ago
Verified Buyer
Was this review helpful to you?
gas vavle
Valve identical to the old one, easy install. Also, great service and extremely fast delivery.
Pete
Chicago
9 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
great product.
perfect match, works as it should came with a new thermocouple and pipe bushings.
got my furnace up and running.
stu
northern Michigan
9 years ago
Verified Buyer
Was this review helpful to you?
Great to find something that works likes it is supposed to.
Easy to install
ridgerunner
Rocky Mount,NC.
9 years ago
Verified Buyer
Was this review helpful to you?
yes I would buy this again
it was in very good shape and every thing that I needed
foss
Attica IN
10 years ago
Verified Buyer
Was this review helpful to you?
Supplyhouse made the day
Right part arrived fast and installed easily. Customer was happy and warm. Problem solved. Thanks again.
Boogerfartface
Decatur, Georgia
10 years ago
Verified Buyer
Was this review helpful to you?
small, but work as a giant.
pure easy to replace and works very well.
rafas
east boston, ma
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
11 Questions11 Questions
Q: I have a old Honeywell gas valve Model # VR800A 1020, 1/2" INLET x 3/4"OUTLET Standing pilot. Is this the correct replacement valve?
Asked by Pat 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo the VR8300A3500, is the cross reference for your old gas valve.
Was this review helpful to you?
Q: can it replace v800a1201
Asked by Wing 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffThere is no cross reference for that valve, you should call with the model & serial # of the unit.
Was this review helpful to you?
Q: I need to replace my V8280A1047. Will this do the job?
Asked by Bob 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the V800A1070 is the direct cross reference of V8280A1047.
Was this review helpful to you?
Q: Do you have a replacement Gas Valve for a Honeywell VR800A-1012 Thanks
Asked by Don 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe replacement for this Gas valve is http://www.supplyhouse.com/Honeywell-VR8300A3500-Standard-Dual-Standing-Pilot-Gas-Valve-1-2-x-3-4-11586000-p
Was this review helpful to you?
Q: Hello, I am looking for a new replacement for my old gas valve model number v800a1344 with 3/4 inlet and 3/4 outlet, would like to know which model is compatible? Thanks
Asked by Needheatnow 12 years ago
Add your answer
Verified Reply- Supply House StaffYes, this is the recommended replacement gas valve for your original part.
Was this review helpful to you?
Q: Will this part replace V8280A1211?
Asked by Troy 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, Honeywell recommends the V800A1070 gas valve as the replacement for the obsolete V8280A1211.
Was this review helpful to you?
Q: I'm looking for a replacement valve for my Honeywell Model V800A1310? Is this the correct valve? Thx Marc
Asked by Marc 12 years ago
Add your answer
-
A qualified gas heater repair person would have to come over and check your unit, its schematic, and manual to see if it is electrically and mechanically equivalent to the model you are trying to replace. Then go thru the safety test procedures after it is installed to see if it does start up, work as intended, and shut off properly in a safe manner.
Was this review helpful to you?
Q: Does this replace a Honeywell V8139A1016? Thanks
Asked by BB 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the V800A1070 would be a suitable replacement.
Was this review helpful to you?
Q: Hello, Is this the correct replacement for a VS820 A1039 gas control valve? It goes on an Enerco infared heater. Thanks Bud
Asked by Bud 14 years ago
Add your answer
Verified Reply- PexSupply StaffVS820A1047 is the recommended replacement for VS820A1039.
Was this review helpful to you?
Q: I HAVE A V800A1088 ON MY BOILER. CAN I USE A A V800A1070? WHAT IS THE DIFERANCE?
Asked by BILL 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe only difference is the inlet size: V800A1070 has a 1/2" inlet and V800A1088 has a 3/4" inlet.
Was this review helpful to you?
