$109.20 each
In Stock
Get 9 Wed, Jul 8
Order by today, receive Wednesday
This item replaces: 9003521005
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–

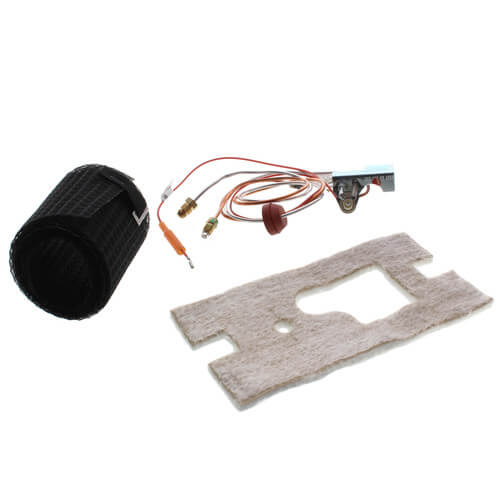

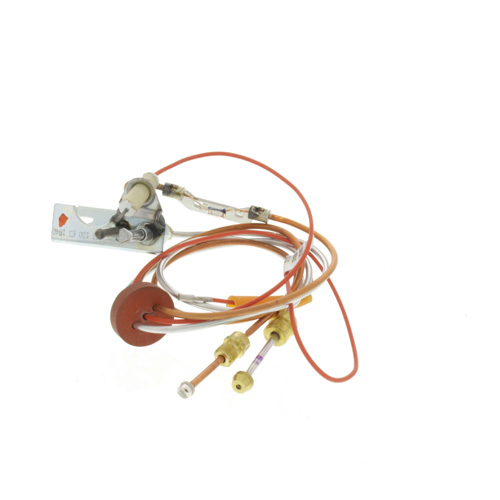

FV pilot assembly, Natural
Specs
–
| Application: | Heating |
|---|---|
| Type: | Natural Gas (NG) |
| Temperature: | 200° |
