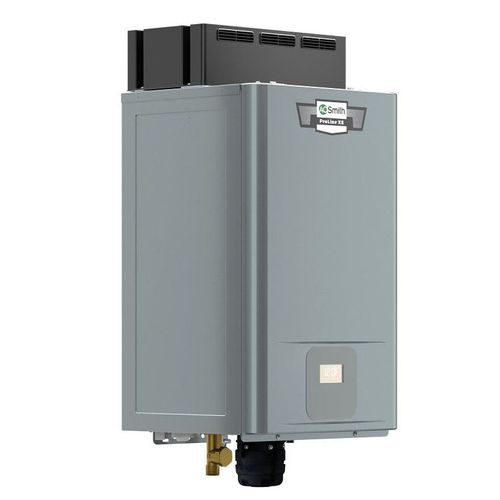

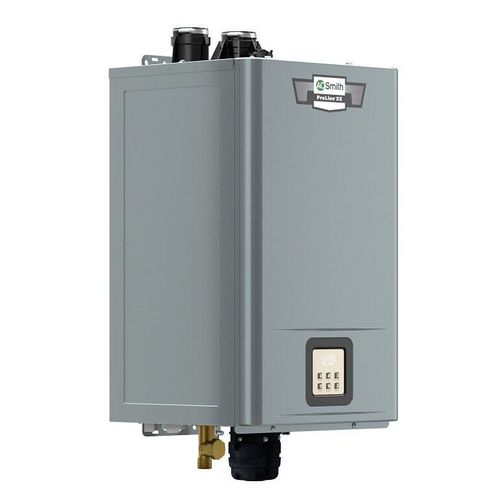

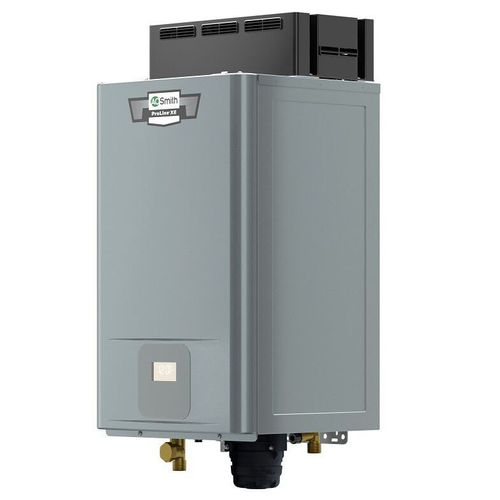

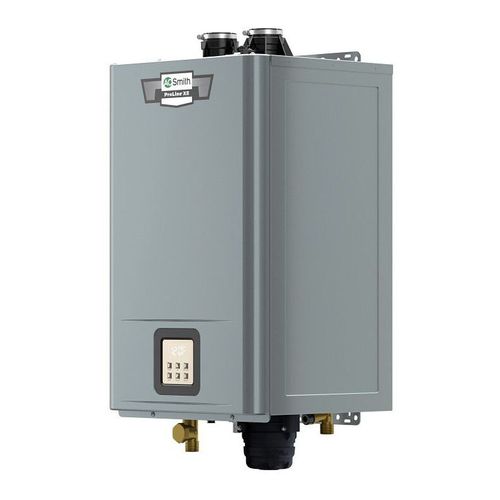

Main product image of 160,000 BTU ATHR-160M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)
Magnifying glass
Hover image to zoom

160,000 BTU ATHR-160M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)

Brand:
AO Smith
SKU:
ATHR-160M
Rating:
(0)
Q&A:
(0)
160,000 BTU ATHR-160M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)
Magnifying glass
Hover image to zoom
$1,792.50 each
In Stock
In Stock
Get 17 Tue, Nov 17 - Thu, Nov 19

Lift Gate

–
This product weighs 125 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Fuel Type
Natural Gas
Product Highlight: Max Flow (GPM)
10.5 MAX GPM
Product Highlight: Installation Type
Indoor Only, Residential
Product Highlight: Max Pressure (PSI)
150 MAX PSI
Product Highlight: Voltage
120v
Product Highlight: Connection Type
FNPT Connection

Description

–
This unit is NOT approved for installation in Manufacture Homes and is not suitable for space heating applications only.

A.O. Smith's ADAPT premium condensing gas tankless water heaters deliver robust, on-demand performance and the flexibility to install in practically any residential setting. Easily add scale prevention protection by replacing the bypass cartridge with an optional X3 cartridge sold separately - which can make the heat exchanger last up to three times longer than a standard tankless water heater while maintaining like-new performance. The ADAPT line features a built-in Control Display for setting and reviewing up to two recirculating schedules; as well as checking heater status and error codes. Manage temperature settings and activate the heater and recirculation remotely with optional kits (sold separately). All models are ENERGY STAR certified and extremely efficient with a Uniform Energy Factor of 0.95 and also comply with Ultra-Low NOx regulations. All ADAPT models are field convertible from Natural Gas to Liquid Propane, kit included, and can be installed indoors or outdoors (with an Outdoor Vent Cap Kit sold separately). Cascade up to 12 like heaters together for larger applications requiring multiple water heaters to work in conjunction, cable included.

Specs

–
Max Pressure (PSI):

150

Voltage:

120v

Hertz:

60

50

ASME:

No

Connection Type:

FNPT

Energy Factor:

0.95

Connection Size:

3/4"

Frequency:

50-60 Hz

Max Flow (GPM):

10.5

Application:

Residential

Vent Type:

Power Vent

Direct Vent

Depth (Inches):

16-1/10"

Gas Connection:

1/2"

Fuel Type:

Natural Gas

Min Temp (F):

100°F

Hot Water Outlet (NPTF):

3/4"

Amperage:

5

Cold Water Inlet (NPTM):

3/4"

BTU (Min):

9000

Vent Size:

3"

Water Connection:

3/4"

Features:

Ultra Low NOx

Installation Type:

Indoor Only

Residential

Product Type:

Tankless Heater

Weight (lbs):

104 lbs

Energy Star Rated:

Yes

Height (Inches):

33-4/5"

BTU (Max):

160000

Width (Inches):

16-1/2"

Type:

Condensing

Max Temp (F):

140°F
