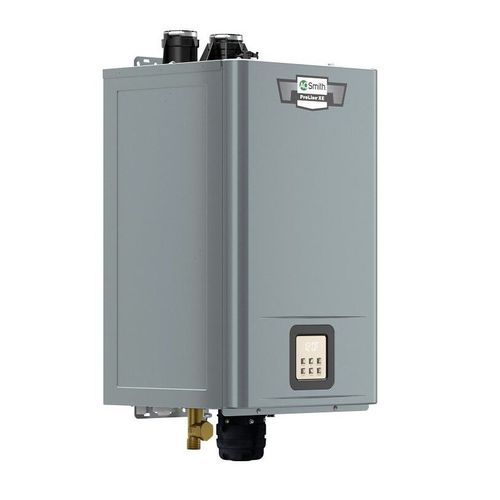

Main product image of 180,000 BTU ATHR-180M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)
Magnifying glass
Hover image to zoom

180,000 BTU ATHR-180M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)

Brand:
AO Smith
SKU:
ATHR-180M
Rating:
(1)
Q&A:
(0)
180,000 BTU ATHR-180M Adapt Premium Condensing Ultra-Low NOx Tankless Water Heater (Natural Gas)
Magnifying glass
Hover image to zoom
$1,960.00 each
In Stock
In Stock
Get 16 Thu, Aug 20 - Mon, Aug 24

Lift Gate

This product weighs 125 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Fuel Type
Natural Gas
Product Highlight: Max Flow (GPM)
10.5 MAX GPM
Product Highlight: Installation Type
Indoor Only
Product Highlight: Energy Star Rated
Yes
Product Highlight: Connection Size
3/4" Connection
Product Highlight: Max Pressure (PSI)
150 MAX PSI

Description

This unit is NOT approved for installation in Manufacture Homes and is not suitable for space heating applications only.

A.O. Smith's ADAPT premium condensing gas tankless water heaters deliver robust, on-demand performance and the flexibility to install in practically any residential setting. Easily add scale prevention protection by replacing the bypass cartridge with an optional X3 cartridge sold separately - which can make the heat exchanger last up to three times longer than a standard tankless water heater while maintaining like-new performance. The ADAPT line features a built-in Control Display for setting and reviewing up to two recirculating schedules; as well as checking heater status and error codes. Manage temperature settings and activate the heater and recirculation remotely with optional kits (sold separately). All models are ENERGY STAR certified and extremely efficient with a Uniform Energy Factor of 0.95 and also comply with Ultra-Low NOx regulations. All ADAPT models are field convertible from Natural Gas to Liquid Propane, kit included, and can be installed indoors or outdoors (with an Outdoor Vent Cap Kit sold separately). Cascade up to 12 like heaters together for larger applications requiring multiple water heaters to work in conjunction, cable included.

Specs

ASME:

No

Energy Star Rated:

Yes

Connection Size:

3/4"

Vent Size:

3"

Features:

Ultra Low NOx

Product Type:

Tankless Heater

Max Flow (GPM):

10.5

Hertz:

50

60

Installation Type:

Indoor Only

Water Connection:

3/4"

Max Pressure (PSI):

150

Max Temp (F):

140°F

Type:

Condensing

BTU (Max):

180000

Frequency:

50-60 Hz

Connection Type:

FNPT

Energy Factor:

0.95

Weight (lbs):

104 lbs

Application:

Residential

Vent Type:

Power Vent

Direct Vent

Height (Inches):

33-4/5"

Cold Water Inlet (NPTM):

3/4"

Min Temp (F):

100°F

Voltage:

120v

Width (Inches):

16-1/2"

Depth (Inches):

16-1/10"

Gas Connection:

1/2"

Fuel Type:

Natural Gas

BTU (Min):

9000

Hot Water Outlet (NPTF):

3/4"

Amperage:

5
